Trunk Open Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

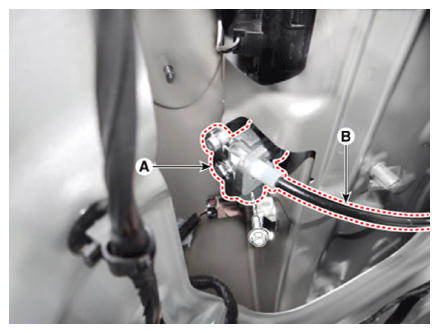

  3. Remove the trunk lid key holder (A) after loosening the mounting bolt.
  4. Disconnect the key holder cable (B).
    G13158511Courtesy of KIA MOTORS AMERICA, INC.

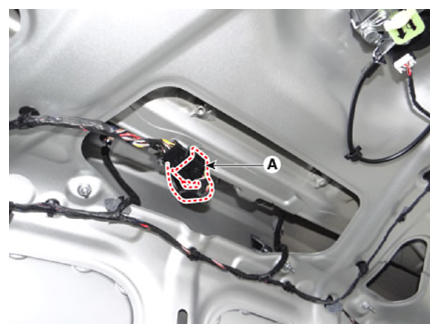

  5. Disconnect the trunk open switch connector (A).
    G13158512Courtesy of KIA MOTORS AMERICA, INC.

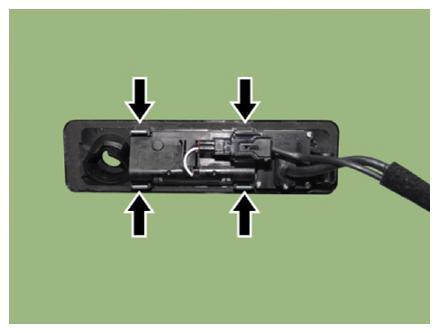

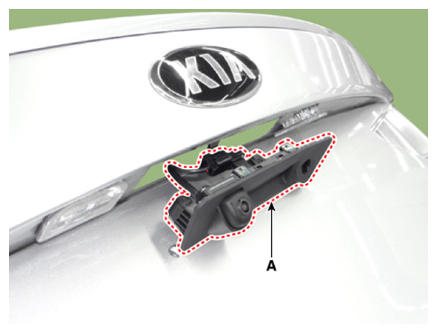

  6. Remove the trunk open switch assembly (A) after disengaging mounting clips.
    G13158513Courtesy of KIA MOTORS AMERICA, INC.
    G13158514Courtesy of KIA MOTORS AMERICA, INC.
