Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

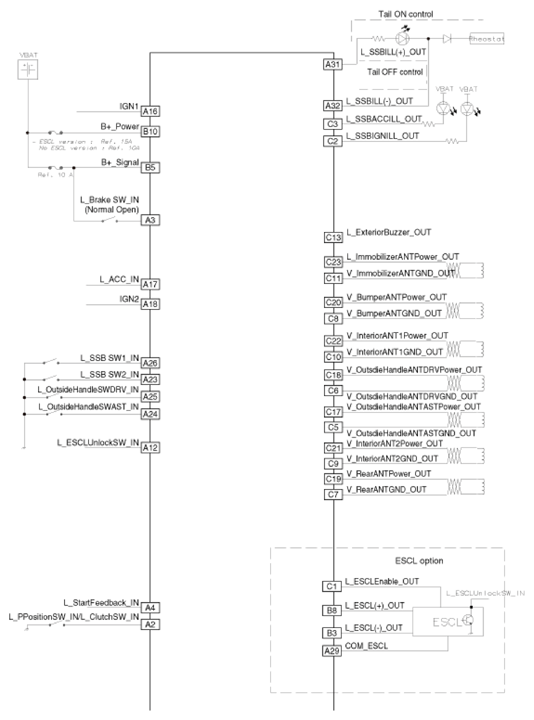

G13158499Courtesy of KIA MOTORS AMERICA, INC.

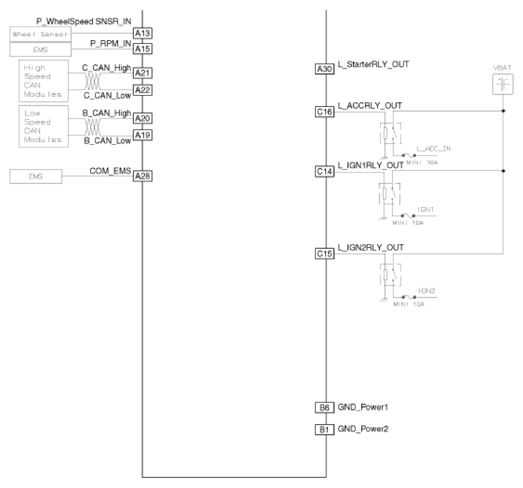

G13158500Courtesy of KIA MOTORS AMERICA, INC.
