Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Installation is the reverse of removal.

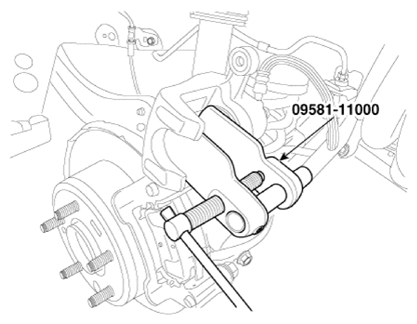

  2. Use a SST (09581-11000) when installing the brake caliper assembly.
    G13156882Courtesy of KIA MOTORS AMERICA, INC.
  3. After installation bleed the brake system.

    (Refer to Brake System - "REPAIR PROCEDURES ")
