Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

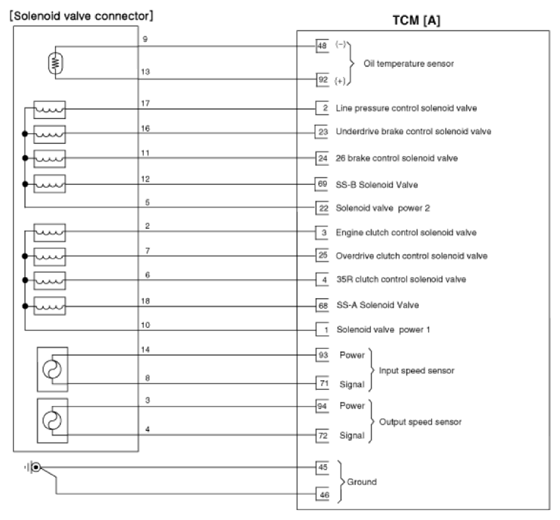

G13155928Courtesy of KIA MOTORS AMERICA, INC.

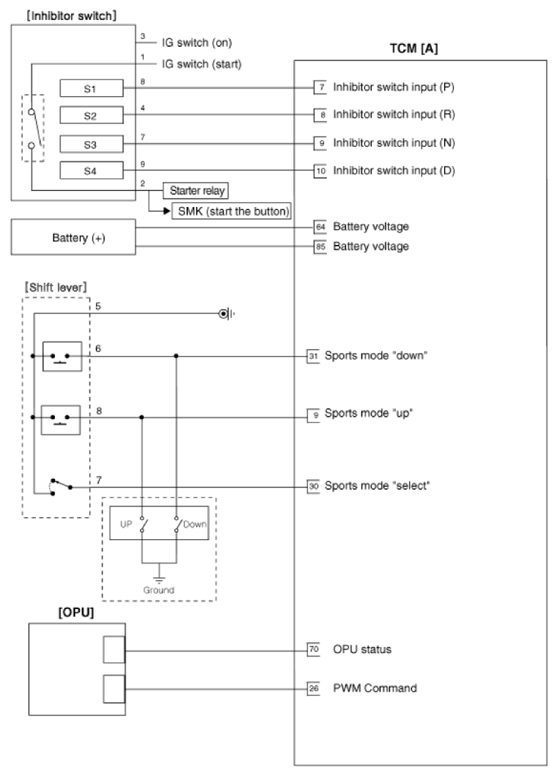

G13155929Courtesy of KIA MOTORS AMERICA, INC.
