Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the headlamp assembly.

    (Refer to Lighting System - "HEAD LAMPS ")

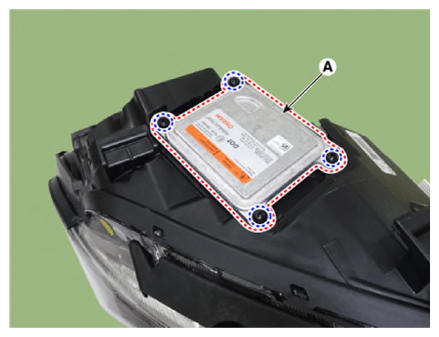

  2. Remove the ballast (A) by loosening the screws.
    G13158208Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Applying with excessive torque to loosen the screw, extra wear may occur on the housing screw boss.

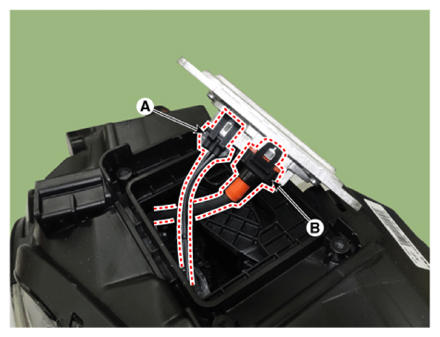

  3. Disconnect the main connector (A) and HID cable (B) from the ballast.
    G13158209Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the dust cover (A) by rotating it in the direction of counterclockwise.
    G13158210Courtesy of KIA MOTORS AMERICA, INC.

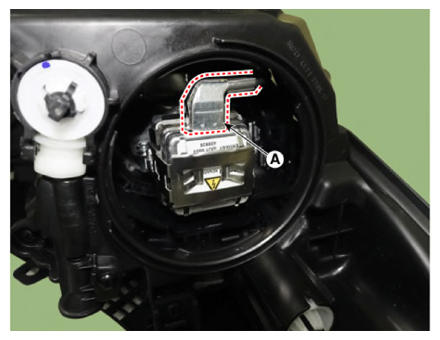

  5. Disconnect the bulb connector (A).
    G13158211Courtesy of KIA MOTORS AMERICA, INC.

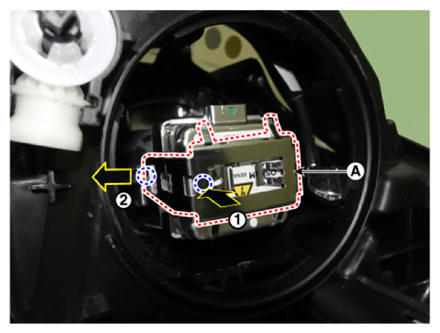

  6. Remove the bulb clip (A) by pushing it in the direction of arrow.
    G13158212Courtesy of KIA MOTORS AMERICA, INC.

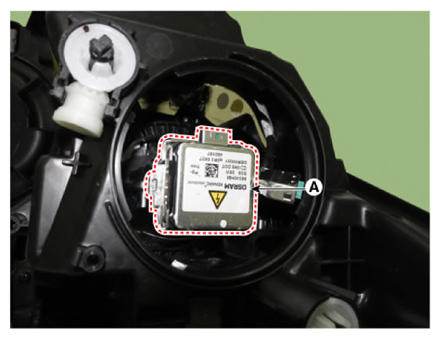

  7. Install the bulb (A) into the new headlamp sub assembly after removing it.
    G13158213Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to scratch the glass part of the bulb when removing or installing it.
    • If the scratch occurred on the bulb, replace it with a new one.

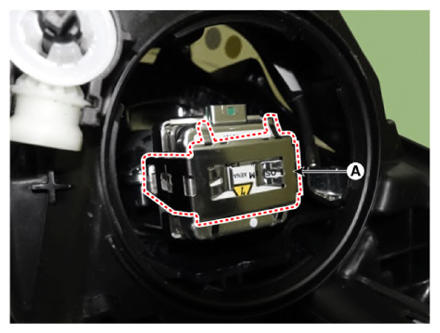

  8. Install the bulb clip (A).
    G13158214Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Incompletion of bulb clip installation, unstable lighting may occur during the driving.
  9. Connect the bulb connector (A).
    G13158215Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Bad lighting may occur due to poor connection of connector.

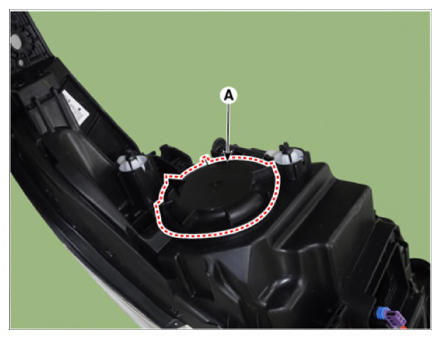

  10. Install the dust cover (A) by rotating it in the direction of clockwise.
    G13158216Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Poor watertight may occur due to poor installing of dust cover.

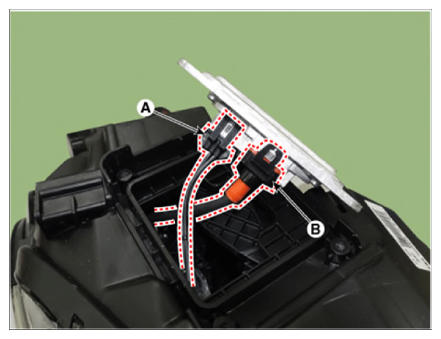

  11. Connect the main connector (A) and HID cable (B) from the ballast.
    G13158217Courtesy of KIA MOTORS AMERICA, INC.

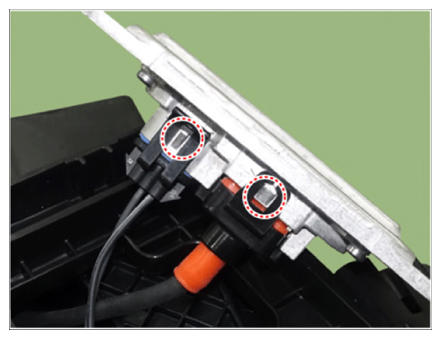

    NOTE: Check the connection state of hooks after connecting the connector and cable.
    G13158218Courtesy of KIA MOTORS AMERICA, INC.
  12. Install the ballast (A) by tightening the screws.
    G13158219Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Applying with excessive torque to tighten the screw, extra wear may occur on the housing screw boss.
    • If excessive wear occurred on the housing screw boss, poor watertight may occur due to poor ballast installing.
  13. Install the headlamp assembly.

    (Refer to Lighting System - "HEAD LAMPS ")

  14. Perform the headlamp aiming procedure.

    (Refer to Lighting System - "HEAD LAMPS ")
