Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

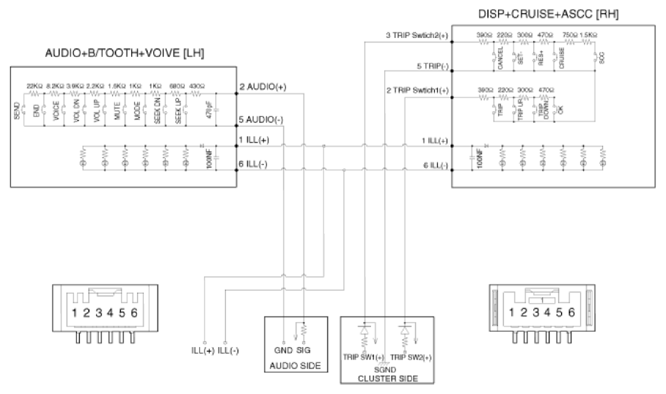

G13155444Courtesy of KIA MOTORS AMERICA, INC.

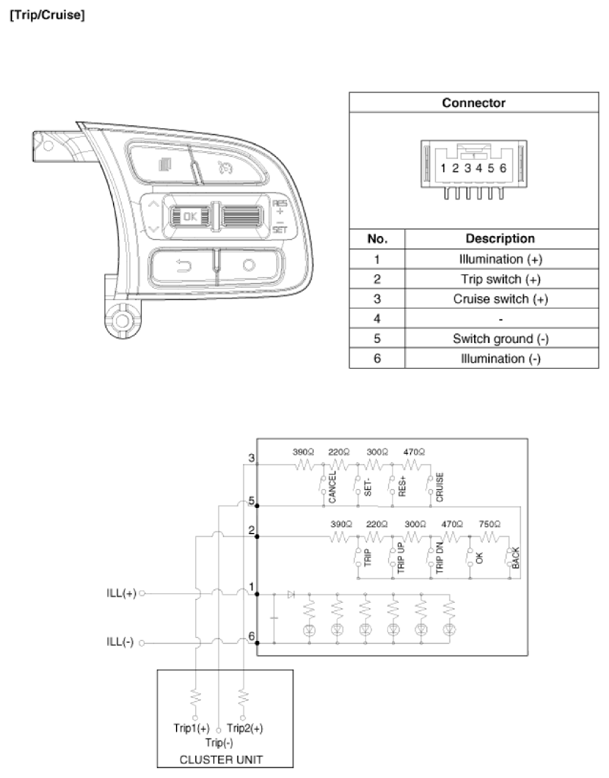

G13155445Courtesy of KIA MOTORS AMERICA, INC.

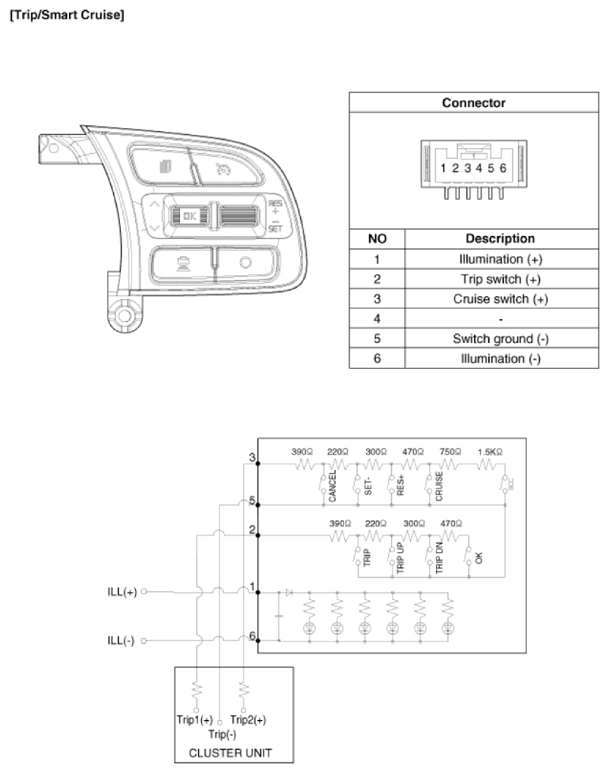

G13155446Courtesy of KIA MOTORS AMERICA, INC.

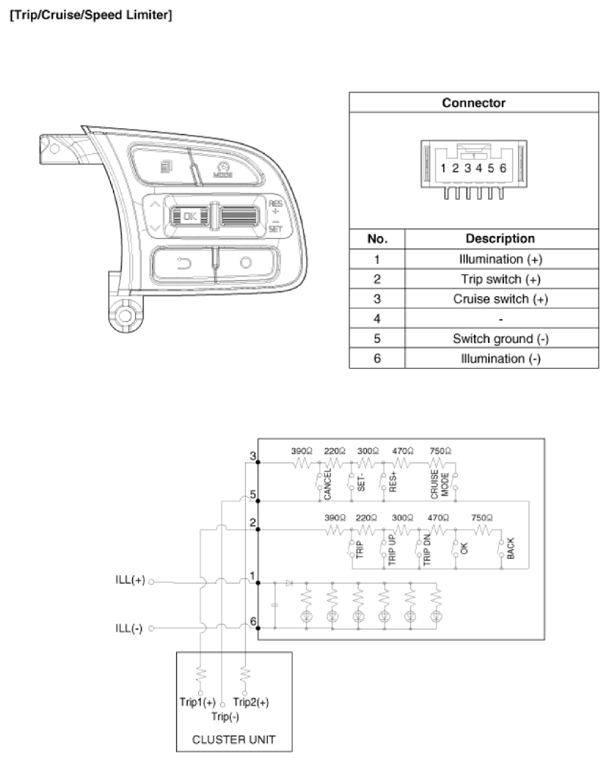

G13155447Courtesy of KIA MOTORS AMERICA, INC.

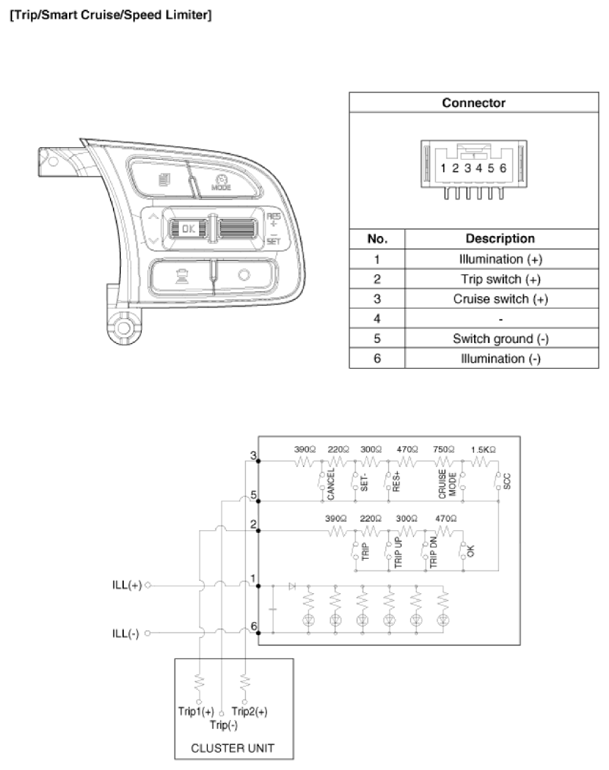

G13155448Courtesy of KIA MOTORS AMERICA, INC.
