Advanced Smart Cruise Control (ASCC) Radar Sensor Alignment

WARNING: This page is about a different variant/trim than selected.

Advanced Smart Cruise Control (ASCC) unit detects a vehicle in front and then calculates the distance to the vehicle in front and the relative speed by using the built-in radar sensor.

In order for the radar sensor to operate correctly, it must be properly aligned parallel to the driving direction of the vehicle. For this reason, the radar sensor alignment procedure must be carried out whenever the sensor has been reinstalled or replaced with a new one.

If the sensor alignment procedure is not performed in the conditions mentioned above, the smart cruise control system may not operate correctly.

NOTE: The ASCC radar sensor alignment is required when:
  • The ASCC unit has been reinstalled or replaced with a new one.
  • The radar sensor or the surrounding parts have been impacted by collision.
  • The sensor cannot detect a vehicle in front.
  • The Steering Angle Sensor (SAS) has been replaced or adjusted.
CAUTION: If the sensor cannot detect the vehicle in front:
  • Park the vehicle on a level ground.
  • Take out heavy luggage from the vehicles' seats or trunk.
  • Set all tires according to the specified pressure.
  • Check wheel alignment.
  • Check that the front surface of the ASCC unit is clean.


  1. Park the vehicle on a level ground.
    NOTE:
    • Adjustment may not be accurate if the vehicle and reflector are placed on different ground levels or on a slope.

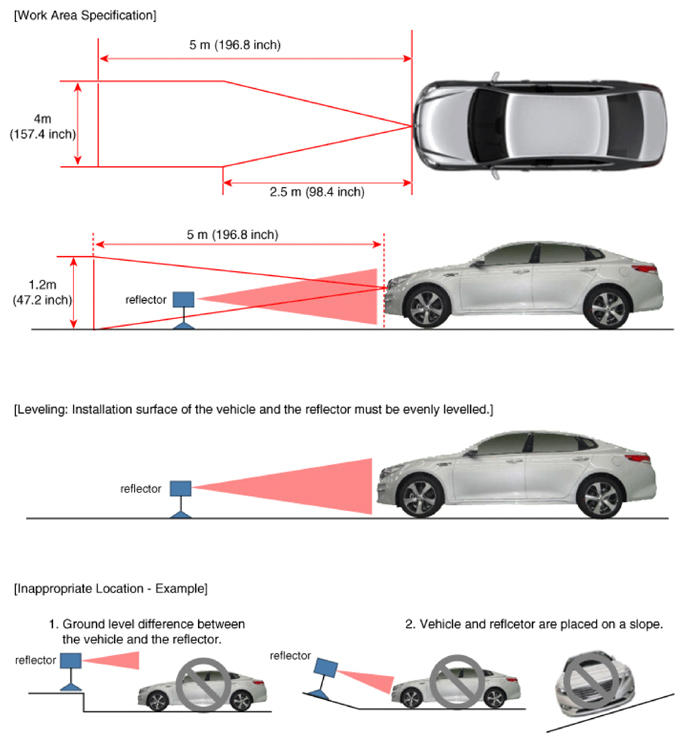

    • Perform in an area with minimum clearance of 8 m to the front, 4 m (157 inch) wide, and 1.2 m (47 inch) above the ground.
    • Remove heavy objects from inside of the vehicle (seating area and trunk).
    • Ensure that all tires are filled with specified air pressure.
    • Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where sensor alignment is performed.
    • Be sure that the vehicle is not moved and free from vibration when performing sensor alignment (getting in/out or opening/closing doors).
    • Check that radiator grille and sensor cover are not dirty.
    • Check for correct wheel alignment.
    • Do not turn OFF the power when performing sensor alignment.
    • Power supplied to the radar sensor must be between 9V-16V.
    • Temperature in the area where sensor alignment is performed must be between -30~60°C (-22~140°F).
    G13155428Courtesy of KIA MOTORS AMERICA, INC.

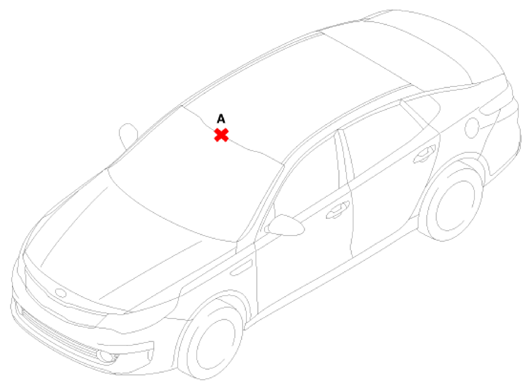

  2. Mark the center point on top of wind glass (A).
    G13155429Courtesy of KIA MOTORS AMERICA, INC.

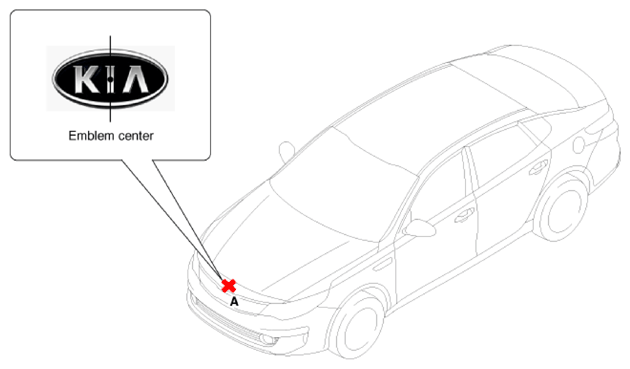

  3. Mark the center point of emblem (A).
    G13155430Courtesy of KIA MOTORS AMERICA, INC.

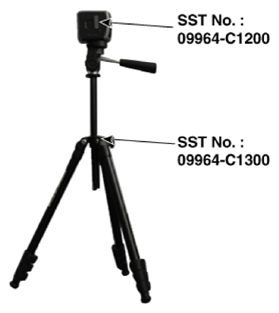

  4. Mount the SCC Calibration Laser [SST No.: 09964-C1200] onto the tripod [SST No.: 09964-C1300].
    G13155431Courtesy of KIA MOTORS AMERICA, INC.

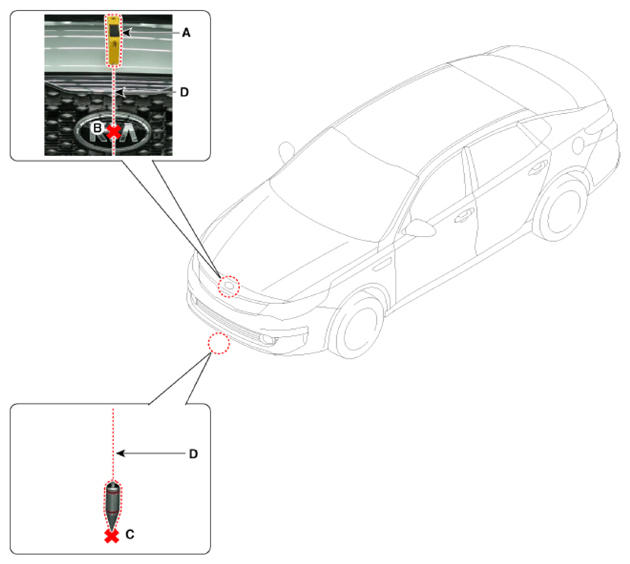

  5. By using the SCC Calibration Reflector [SST No.: 09964-C1100] (A), adjust the wire (D) so that the center point of emblem (B) and the center point on the ground (C) are perpendicular to each other.
    G13155432Courtesy of KIA MOTORS AMERICA, INC.

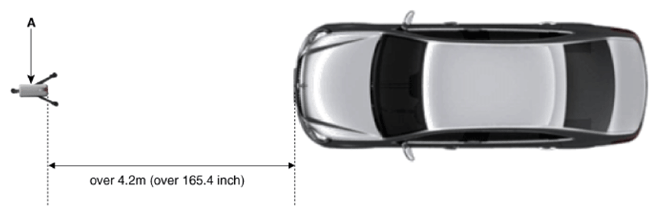

  6. Install the vertical/horizontal laser [SST No.: 09964-C1200] (A) at least 4.2 m (165.4 inch) to the front of the vehicle.
    G13155433Courtesy of KIA MOTORS AMERICA, INC.

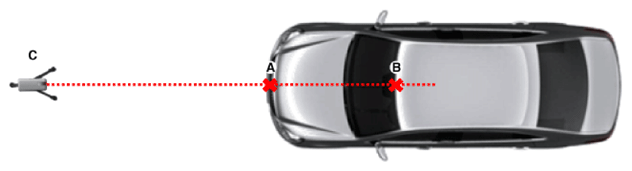

  7. Match the vertical line of laser to (A) and (B) using the vertical/horizontal laser (C) [SST No.: 09964-C1200].
    G13155434Courtesy of KIA MOTORS AMERICA, INC.

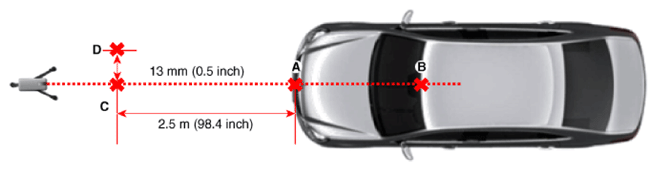

  8. Mark (C) at 2.5 m (98.4 inch) from (A) in front of the vehicle.
  9. Mark point (D) 13 mm (0.5 inch) to the left from point (C).
    G13155435Courtesy of KIA MOTORS AMERICA, INC.

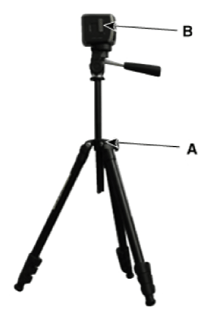

  10. Remove the SCC Calibration Laser [SST No.: 09964-C1200] (B) from the tripod [SST No.: 09964-C1300] (A).
    G13155436Courtesy of KIA MOTORS AMERICA, INC.

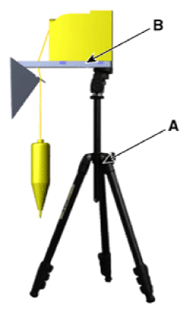

  11. Mount the reflector [SST No.: 09964-C1100] (B) onto the tripod [SST No.: 09964-C1300] (A).
    G13155437Courtesy of KIA MOTORS AMERICA, INC.

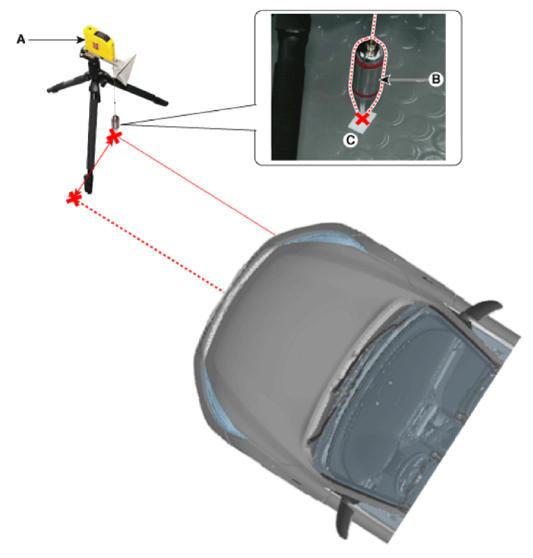

  12. Align the vertical weight (B) of the SCC Calibration Reflector [SST No.: 09964-C1100] (A) with the point (C).
    G13155438Courtesy of KIA MOTORS AMERICA, INC.

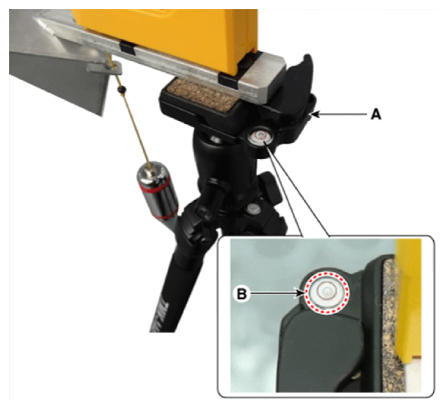

  13. Using the bubble level (B) of the tripod [SST No.: 09964-C1300] (A), set the reflector horizontally.
    G13155439Courtesy of KIA MOTORS AMERICA, INC.

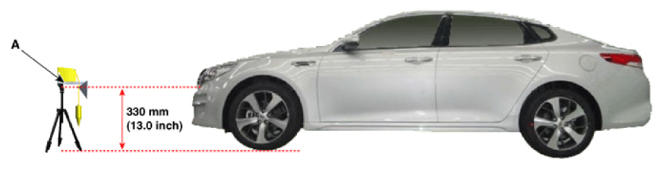

  14. Set the height of the SCC calibration reflector [SST No.: 09964-C1100] (A) to 330 mm (13.0 inch).
    G13155440Courtesy of KIA MOTORS AMERICA, INC.
  15. Visually check again the radar sensor and the surface of the front bumper for the following.
    NOTE:
    • Make sure that there is no debris, or reflecting object on the surface of the radar.
    • Make sure that there is no debris, or reflecting object on the radiator grille.
  16. Connect the KDS to the DLC of the vehicle and start sensor alignment.
    NOTE: If the engine is running, the vibration may cause inaccurate sensor alignment, so perform sensor alignment in IG ON mode.

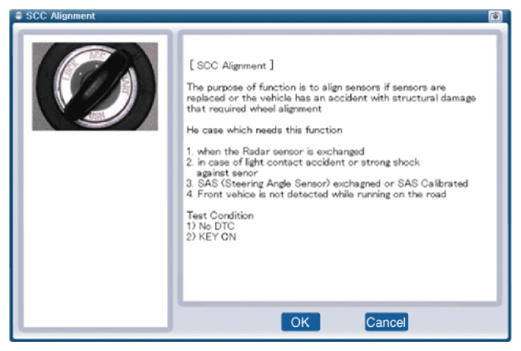

  17. After correctly selecting the vehicle model, select "SCC Alignment" from the auxiliary functions in KDS Menu.
    G13155441Courtesy of KIA MOTORS AMERICA, INC.

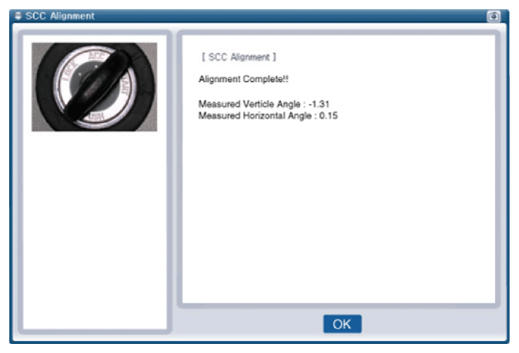

  18. Perform sensor alignment as indicated on the KDS monitor.
    G13155442Courtesy of KIA MOTORS AMERICA, INC.
  19. In case of sensor alignment failure, check the alignment conditions. Turn the ignition key OFF, then reperform the sensor alignment procedure.
