Smart Key Unit

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ")
Remove the smart key unit (A) after loosening the bolt and screw.

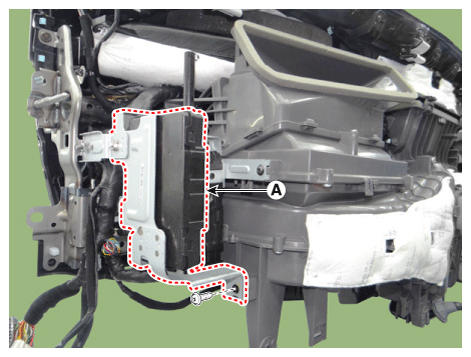

Fig 1: Locating Smart Key Unit (SMK) With Bolt & Screw
Courtesy of KIA MOTORS AMERICA, INC.

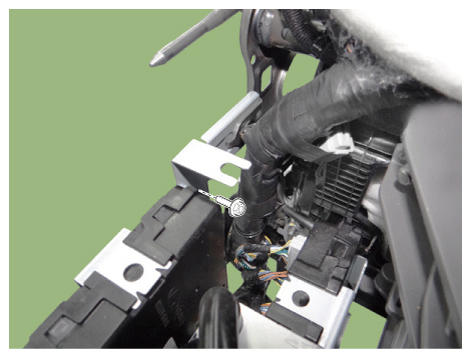

Fig 2: Locating SMK
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the smart key unit connectors (A).

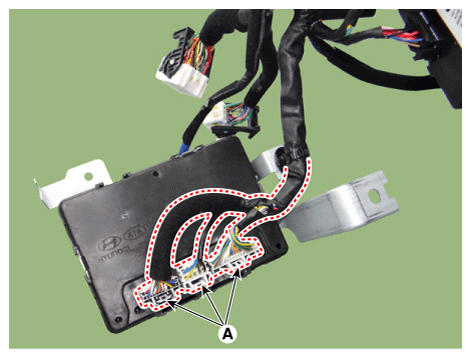

Fig 3: Locating SMK Connectors
Courtesy of KIA MOTORS AMERICA, INC.
