Components Location

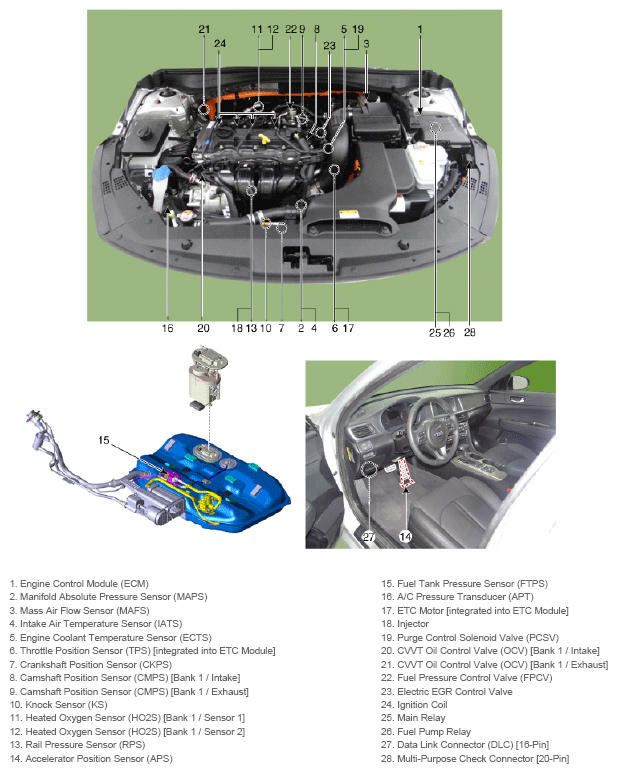

G13155673Courtesy of KIA MOTORS AMERICA, INC.

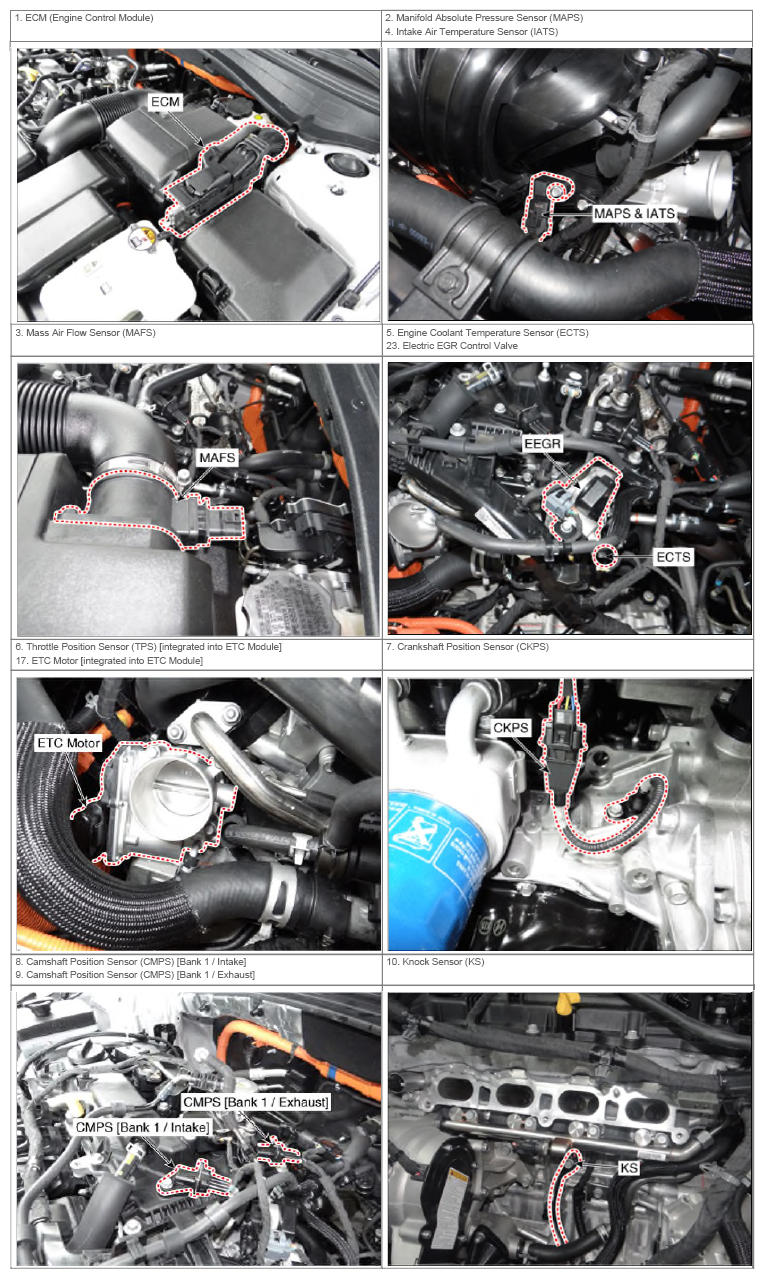

G13155674Courtesy of KIA MOTORS AMERICA, INC.

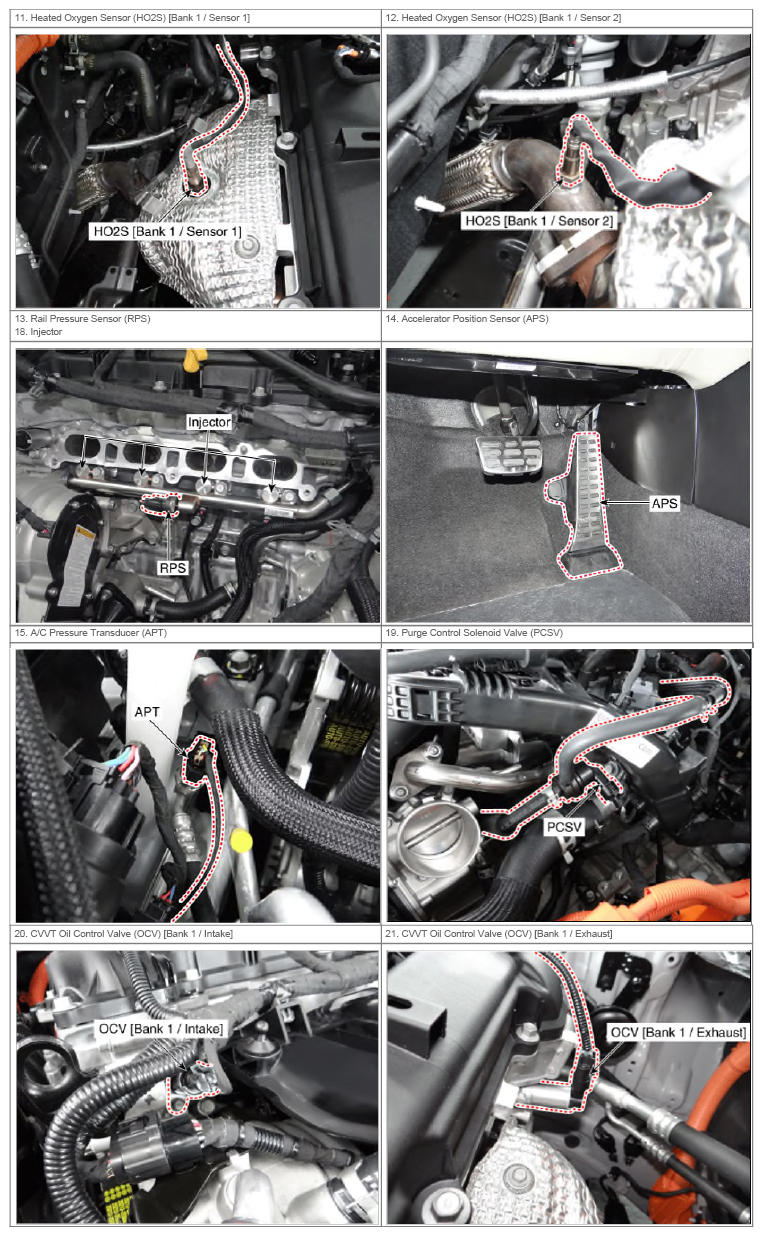

G13155675Courtesy of KIA MOTORS AMERICA, INC.

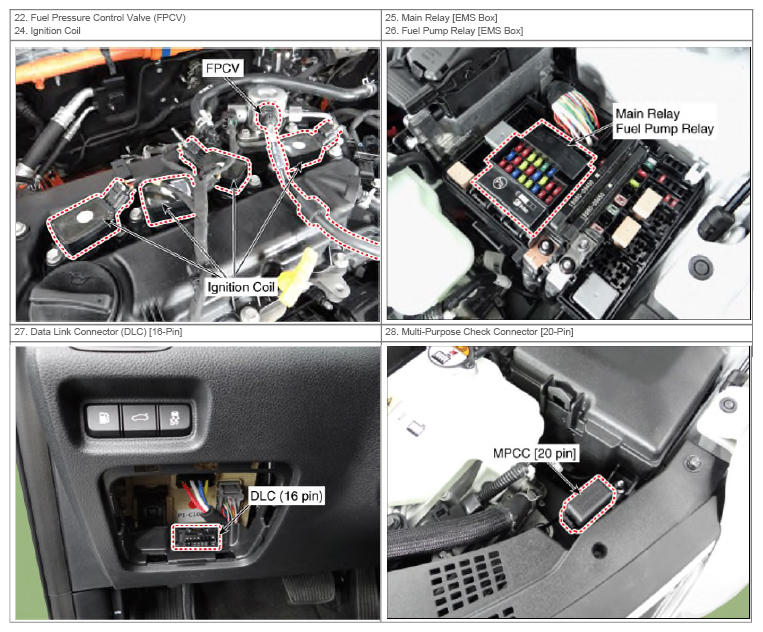

G13155676Courtesy of KIA MOTORS AMERICA, INC.
