Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

  3. Remove the start/stop button assembly (A) after loosening the screws.

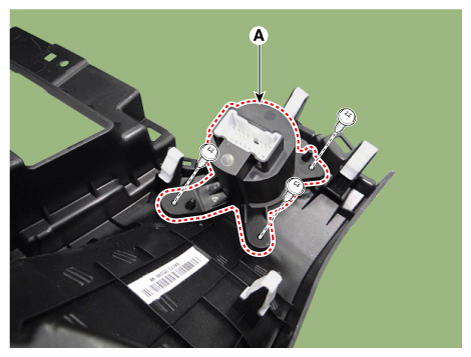

    Fig 1: Locating Start/Stop Button Assembly With Screws
    G12312157Courtesy of KIA MOTORS AMERICA, INC.
