Trunk Open Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

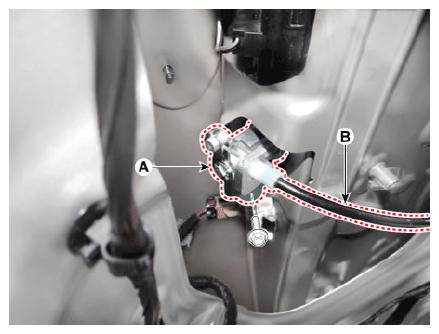

  3. Remove the trunk lid key holder (A) after loosening the mounting bolt.
  4. Disconnect the key holder cable (B).
    G13081029Courtesy of KIA MOTORS AMERICA, INC.

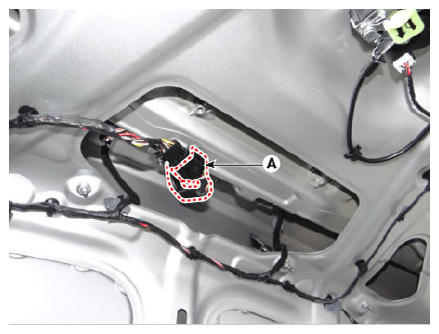

  5. Disconnect the trunk open switch connector (A).
    G13081030Courtesy of KIA MOTORS AMERICA, INC.

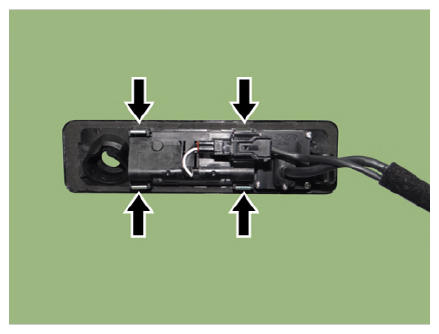

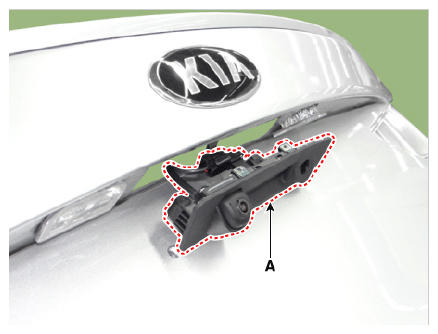

  6. Remove the trunk open switch assembly (A) after disengaging mounting clips.
G13081031Courtesy of KIA MOTORS AMERICA, INC.
G13081032Courtesy of KIA MOTORS AMERICA, INC.
