Repair Procedures: Replacement: Inspection

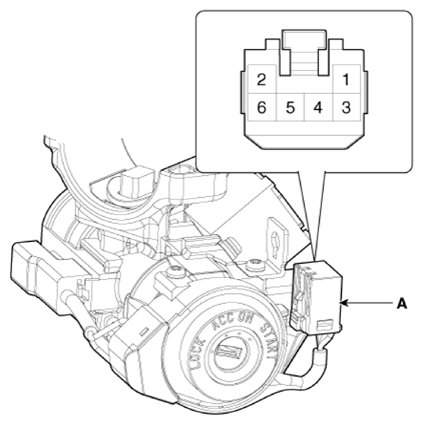

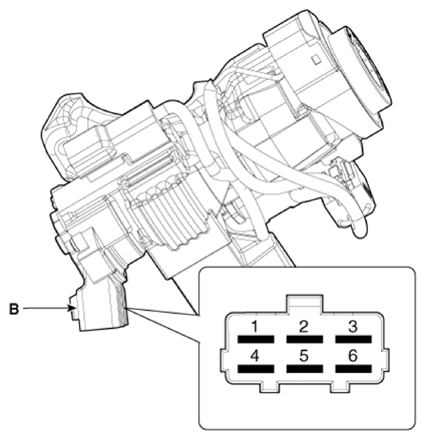

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G12920864Courtesy of KIA MOTORS AMERICA, INC.
    G12920865Courtesy of KIA MOTORS AMERICA, INC.

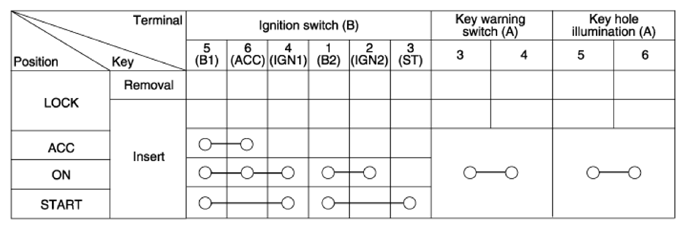

  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.
G12920866Courtesy of KIA MOTORS AMERICA, INC.
