Shift Cable: Components: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

Be sure to read and follow the "GENERAL SAFETY INFORMATION AND CAUTION " before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
Be sure to shut off the high voltage circuit according to the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system to avoid serious electrical injuries.

Shut off the high voltage circuit.
(Refer to Automatic Transaxle System - "HIGH VOLTAGE SHUT-OFF PROCEDURE ")
Drain the coolant of hybrid motor cooling system.
(Refer to Hybrid Motor System - "COOLANT ")
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the hybrid power control unit (HPCU) assembly.
(Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT ")

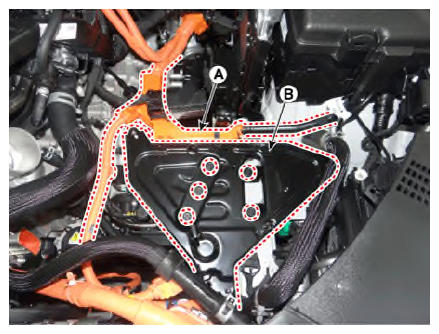

Remove the high voltage cable (A) and HPCU tray (B).

Courtesy of KIA MOTORS AMERICA, INC.

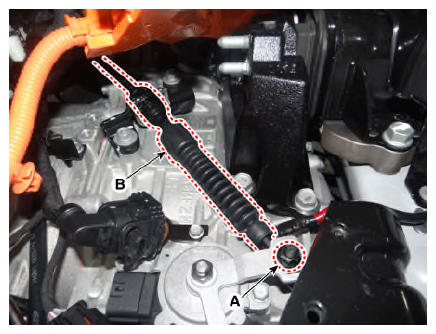

Loosen the nut (A) and then remove the shift cable (B) from the bracket.

Courtesy of KIA MOTORS AMERICA, INC.

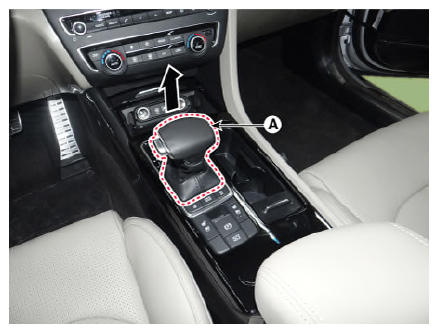

Remove the knob & boots (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")

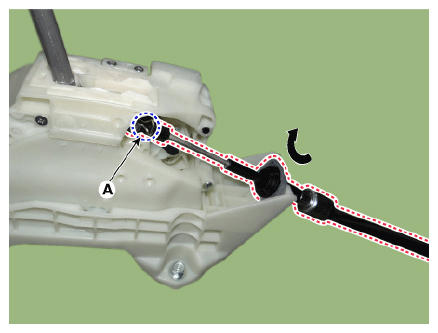

Remove the shift cable after separating the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

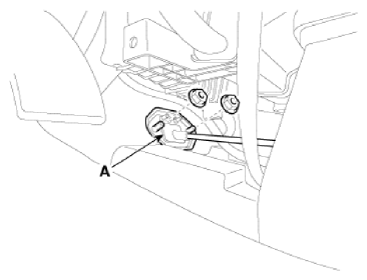

Remove the shift cable retainer (A) after loosening the nuts. Then, remove the shift cable by pulling it toward the vehicle interior.

Courtesy of KIA MOTORS AMERICA, INC.
