FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

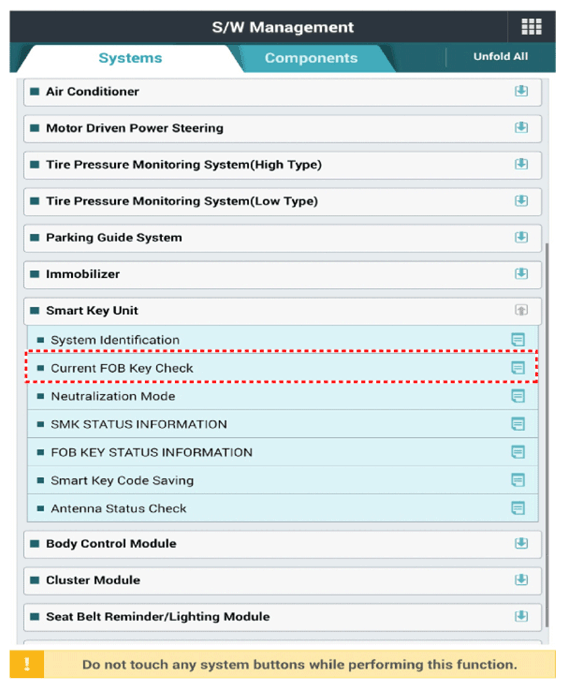

    G12580215Courtesy of KIA MOTORS AMERICA, INC.

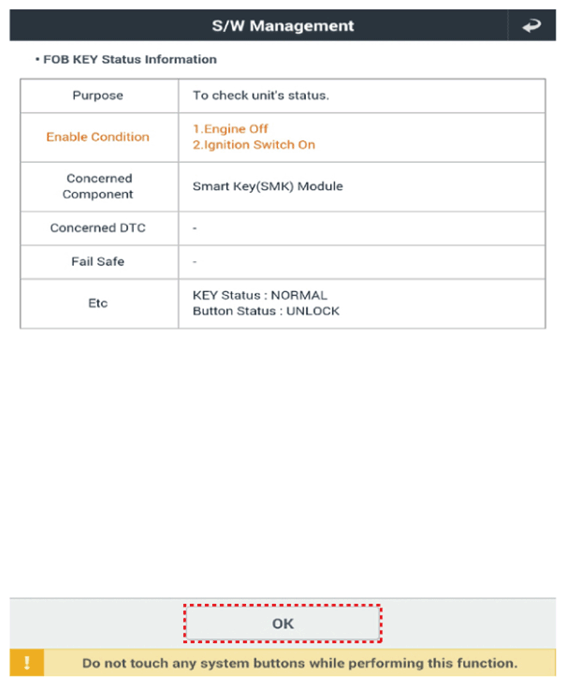

    G12580216Courtesy of KIA MOTORS AMERICA, INC.

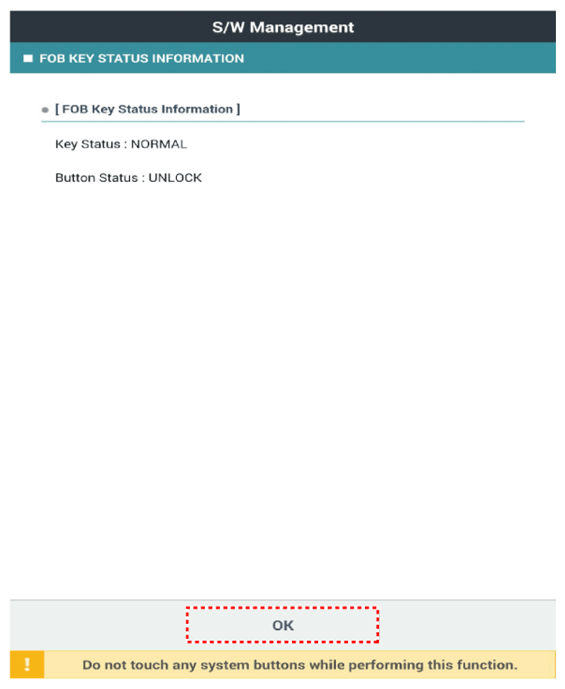

    G12580217Courtesy of KIA MOTORS AMERICA, INC.
