Repair Procedures: Removal

  1. Remove the front bumper assembly.

    (Refer to Body - " FRONT BUMPER ASSEMBLY  ")

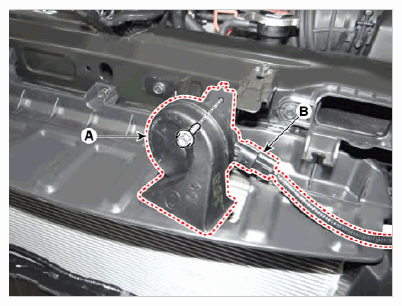

  2. Remove the horn (A) after disconnecting the horn connector (B) and loosening the mounting the bolt.
G12579822Courtesy of KIA MOTORS AMERICA, INC.
