O2 Sensor Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

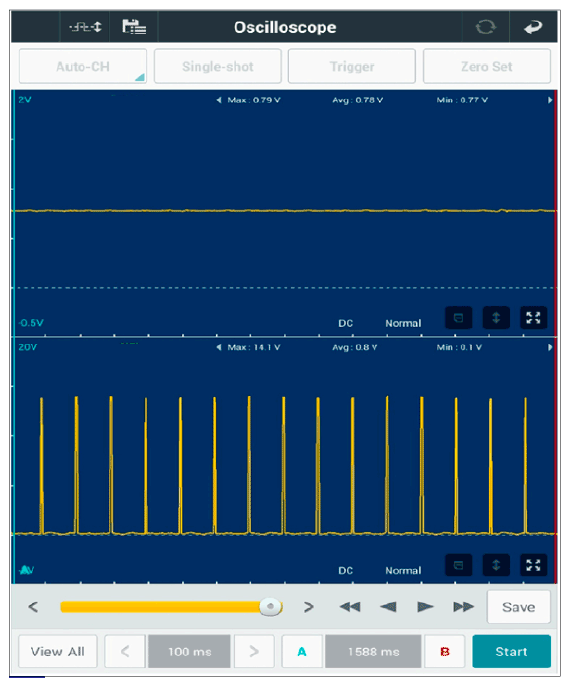

HO2S (B1/S2) harness connector | 1 (Signal) | Chassis ground | 2 (Ground) | figure below. |
| HO2S (B1/S2) harness connector | 4 (Control) | Chassis ground | - | ||
Good
- Go to "Verification of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, Replace the Three-Way Catalytic Converter and then go to "Verification of Repair " procedure.
