Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

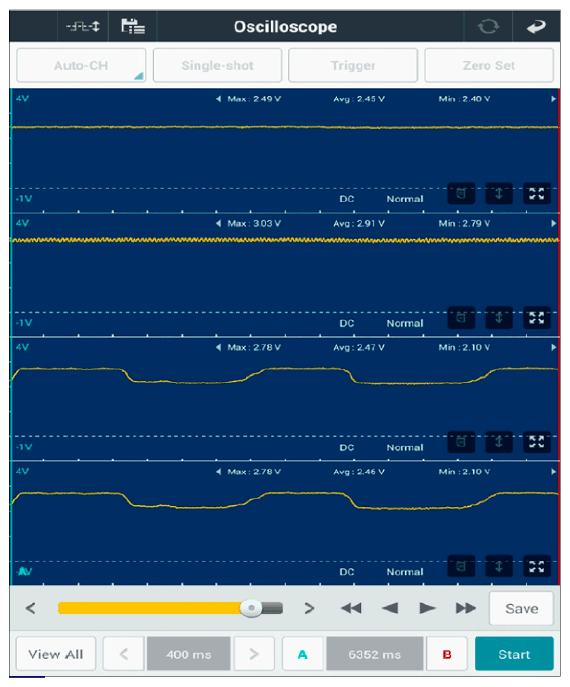

HO2S (B1/S1) harness connector | 1 (Virtual Ground) | Chassis ground | - | figure below. |
| HO2S (B1/S1) harness connector | 2 (Nernst Voltage) | Chassis ground | - | ||
| HO2S (B1/S1) harness connector | 3 (Pumping Current) | Chassis ground | - | ||
| HO2S (B1/S1) harness connector | 6 (Trim Resistor) | Chassis ground | - | ||
Good
- Go to "Verification of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the HO2S (B1/S1) and go to "Verification of Repair " procedure.
