Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - " GLOVE BOX  ")

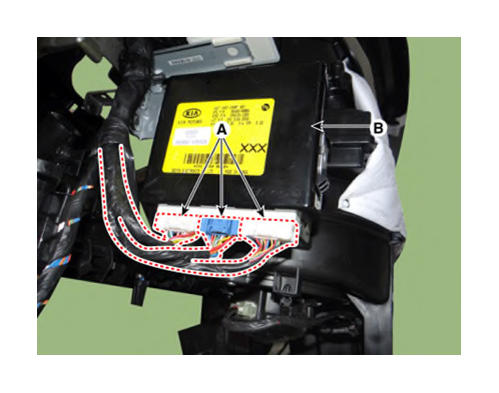

  3. Remove the smart key unit (B) after disconnecting the connectors (A).
    G12580186Courtesy of KIA MOTORS AMERICA, INC.

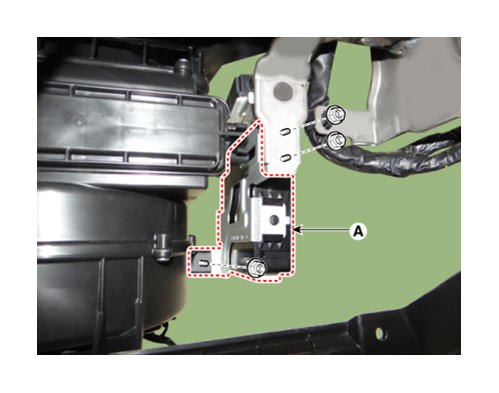

  4. Remove the smart key unit (A) after loosening the mounting nuts.
    G12580187Courtesy of KIA MOTORS AMERICA, INC.
