Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

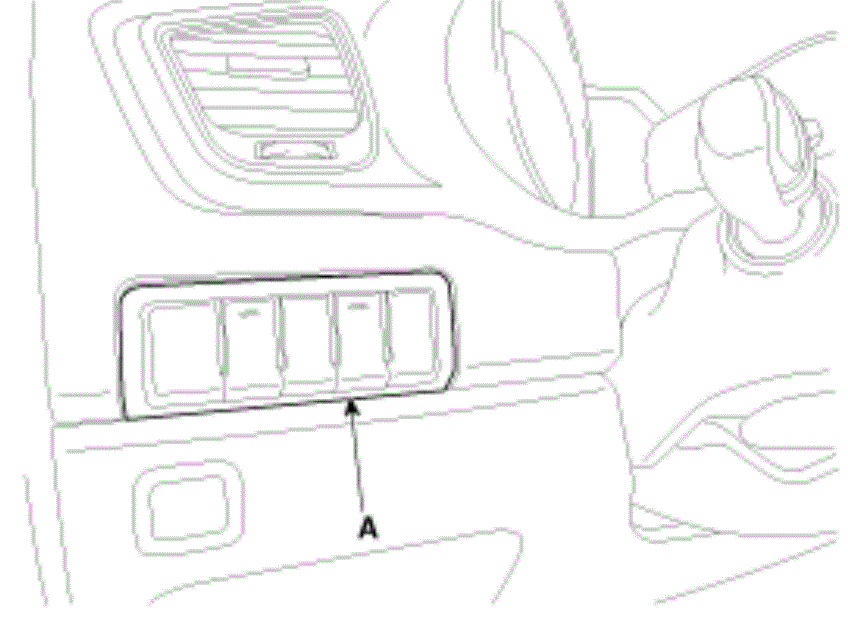

  3. Remove the crash pad side switch assembly (A).
    G13045672Courtesy of KIA MOTORS AMERICA, INC.

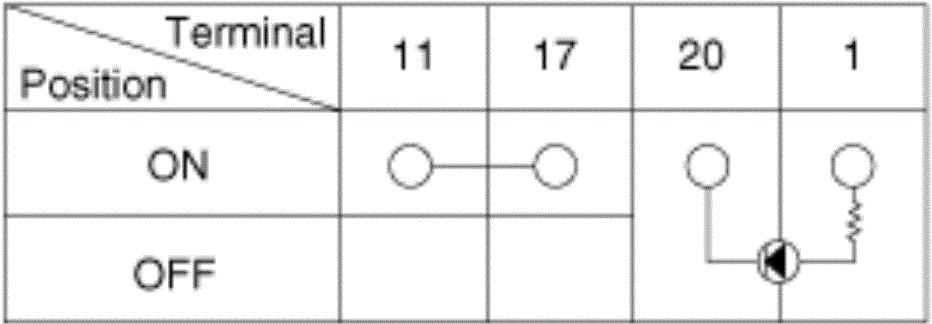

  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
G13045673Courtesy of KIA MOTORS AMERICA, INC.
