Smart Key Code Saving

  1. Connect the DLC cable of KDS to the data link connector (16 pins) in driver side crash pad lower panel, and then turn the power on KDS.
    G13047479Courtesy of KIA MOTORS AMERICA, INC.

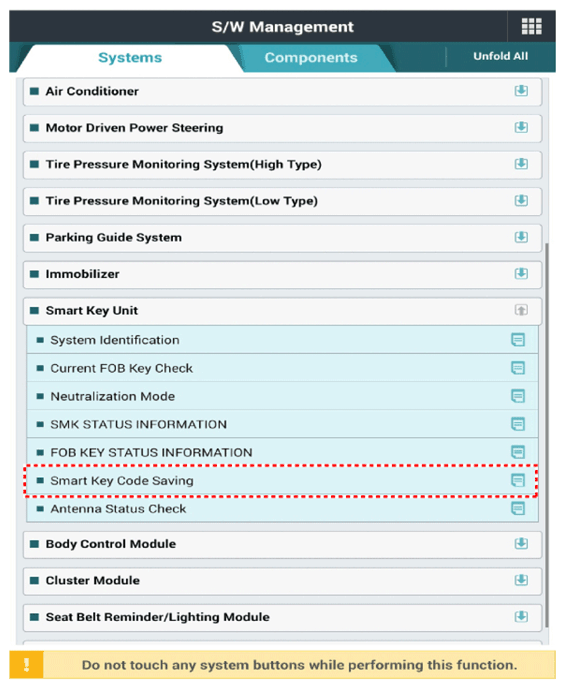

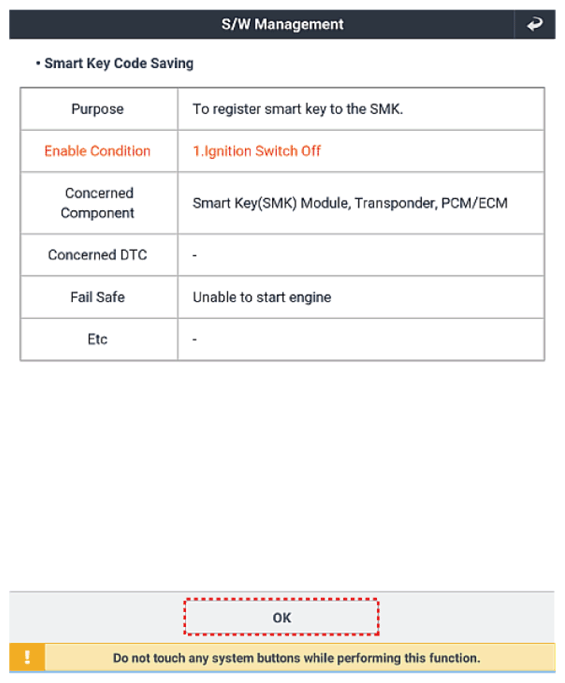

  2. Select the vehicle model and then do "Smart key code saving".
    G13047480Courtesy of KIA MOTORS AMERICA, INC.
    G13047481Courtesy of KIA MOTORS AMERICA, INC.

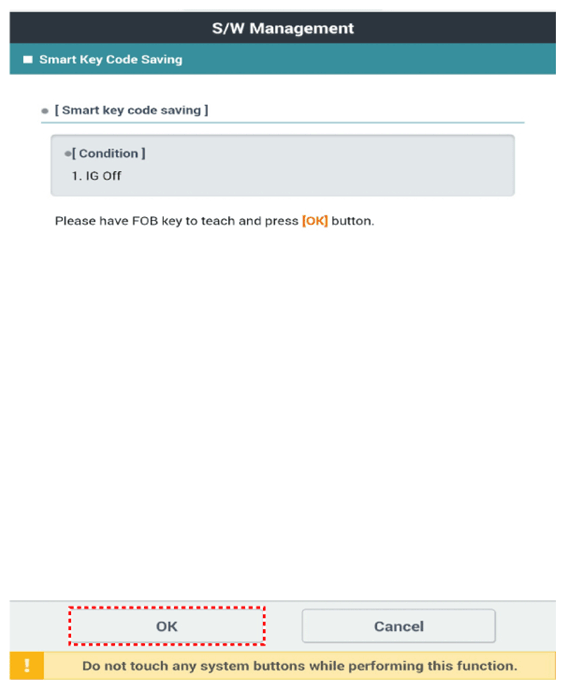

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G13047482Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

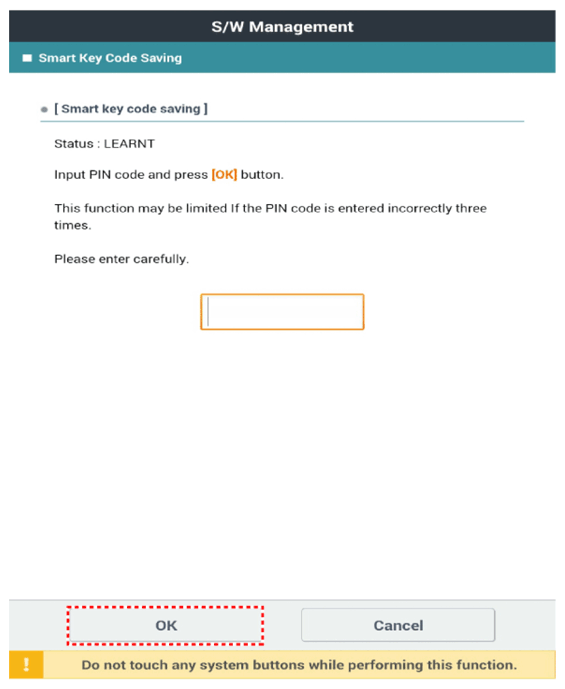

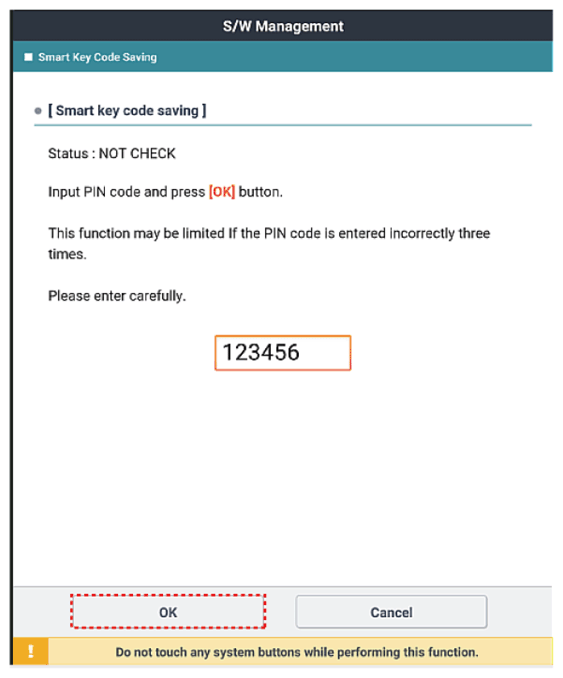

  5. Input the "Pin code" for first key teaching.
    G13047483Courtesy of KIA MOTORS AMERICA, INC.
    G13047484Courtesy of KIA MOTORS AMERICA, INC.
    G13047485Courtesy of KIA MOTORS AMERICA, INC.

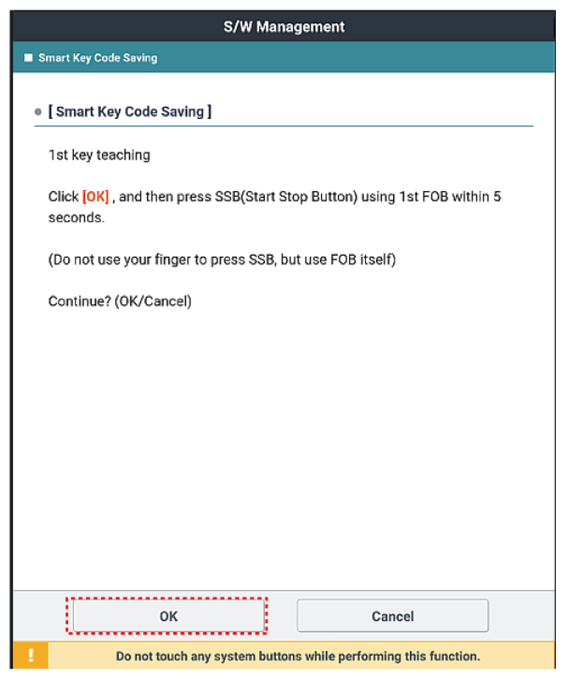

  6. Confirm the message "First key teaching completed".
    G13047486Courtesy of KIA MOTORS AMERICA, INC.

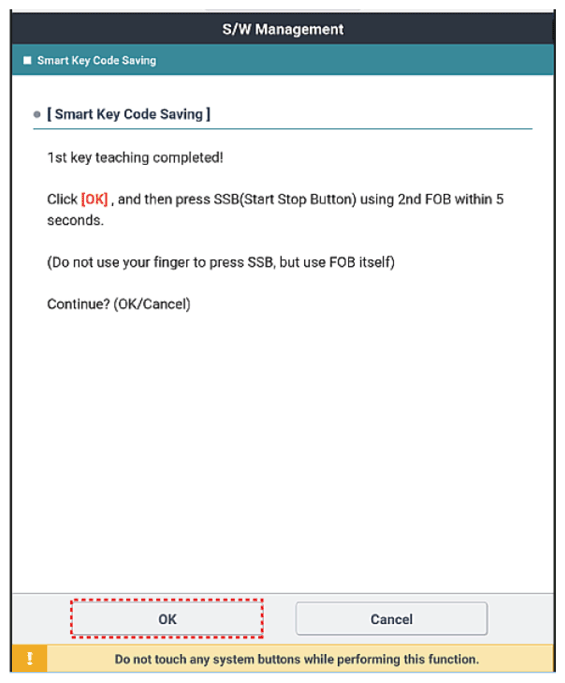

  7. Press the SSB with smart key within 5 sec after pressing "OK".
    G13047487Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".
    G13047488Courtesy of KIA MOTORS AMERICA, INC.
    G13047489Courtesy of KIA MOTORS AMERICA, INC.

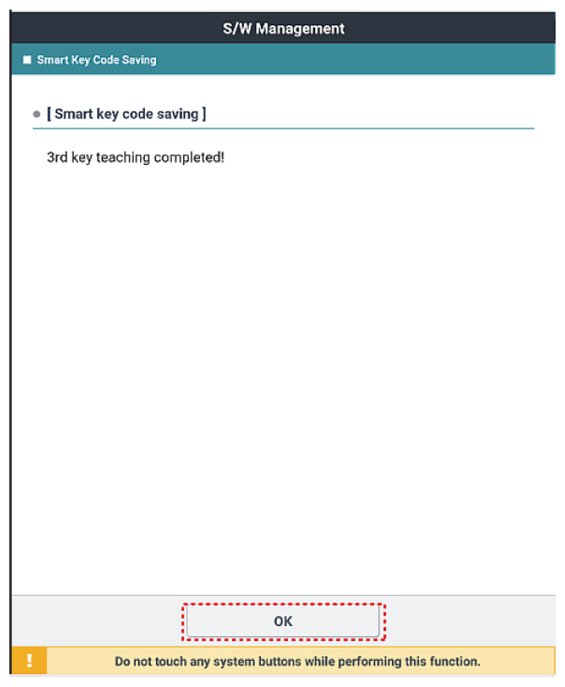

  9. Then the screen will be shown as below when key teaching process is completed.
G13047490Courtesy of KIA MOTORS AMERICA, INC.
