Repair Procedures: Removal

Remove the front wheel and tire (A) from front hub.
Tightening torque:

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb.ft)

CAUTION: Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Courtesy of KIA MOTORS AMERICA, INC.

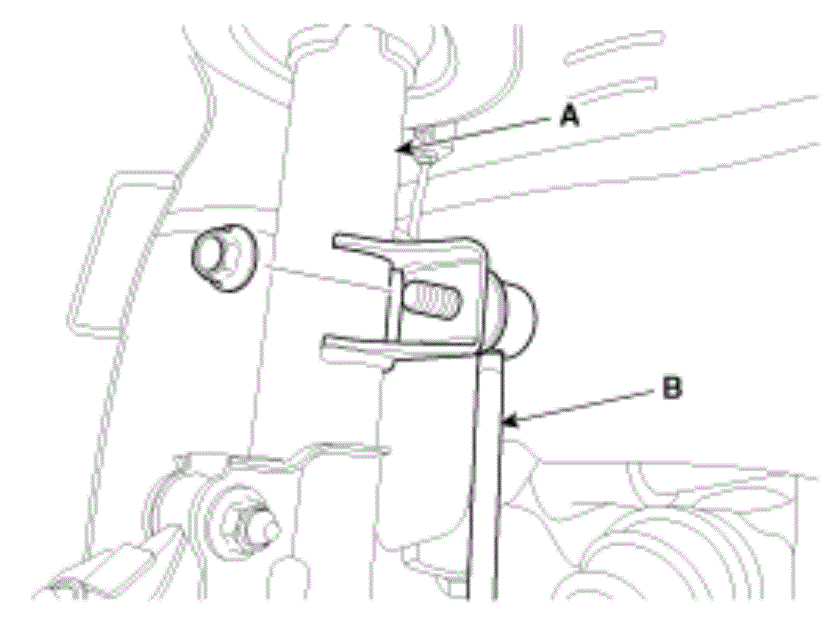

Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening torque:
1. 6.9 ~ 98.0 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)
2. 16.7 ~ 22.6 N.m (1.7 ~ 2.3 kgf.m, 12.3 ~ 16.6)
Courtesy of KIA MOTORS AMERICA, INC.

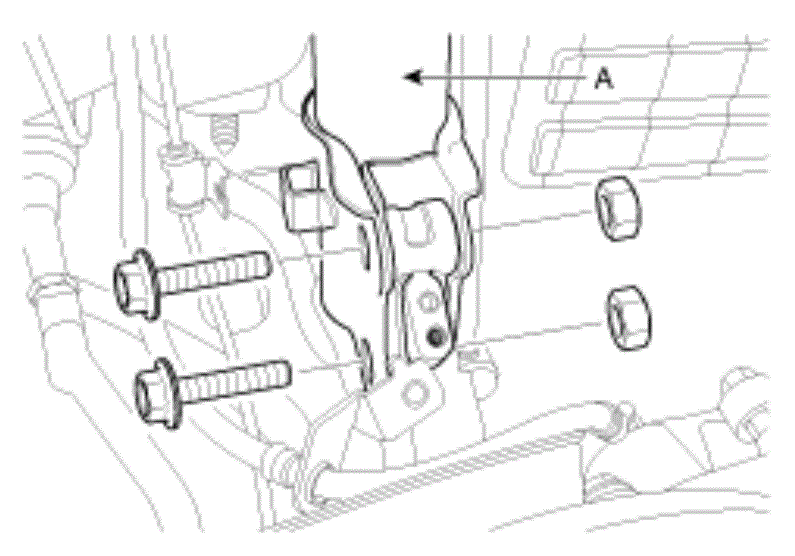

Disconnect the front strut assembly (A) from the knuckle by loosening the bolt and nut.
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front strut assembly (A) with the knuckle by loosening the bolt & nut.
Tightening torque:

196.1 ~ 215.7 N.m (20.0 ~ 22.0 kgf.m, 144.7 ~ 159.1 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to Body (Interior and Exterior) - "COWL TOP COVER ")
Loosening the nut (A) and then remove the strut assembly.
Tightening torque:

53.9 ~ 73.5 N.m (5.5 ~ 7.5 kgf.m, 39.8 ~ 54.2 lb-lf)

Courtesy of KIA MOTORS AMERICA, INC.
