Repair Procedures: Removal

Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3 N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5lb-ft)
CAUTION:
- Keep the gear in the neutral range to prevent any damage on the clock spring inner cable while handling the steering wheel.
- Do not reuse the bolt.
Courtesy of KIA MOTORS AMERICA, INC.
Remove the power steering oil pump pressure hose (A).
Tightening torque:

53.9 ~ 63.7 N.m (5.5 ~ 6.5 kgf.m, 39.8 ~ 47.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb.ft)

CAUTION: Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Courtesy of KIA MOTORS AMERICA, INC.

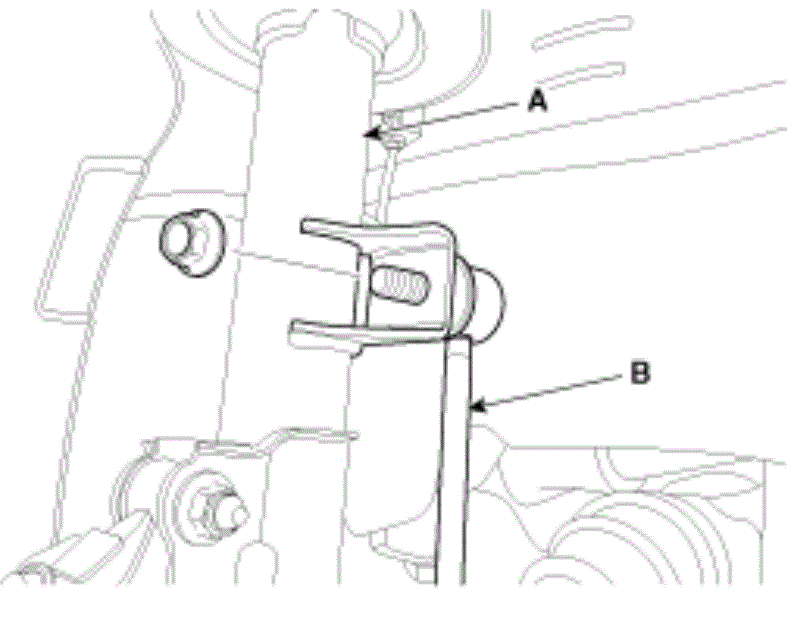

Disconnect the stabilizer link (B) from the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

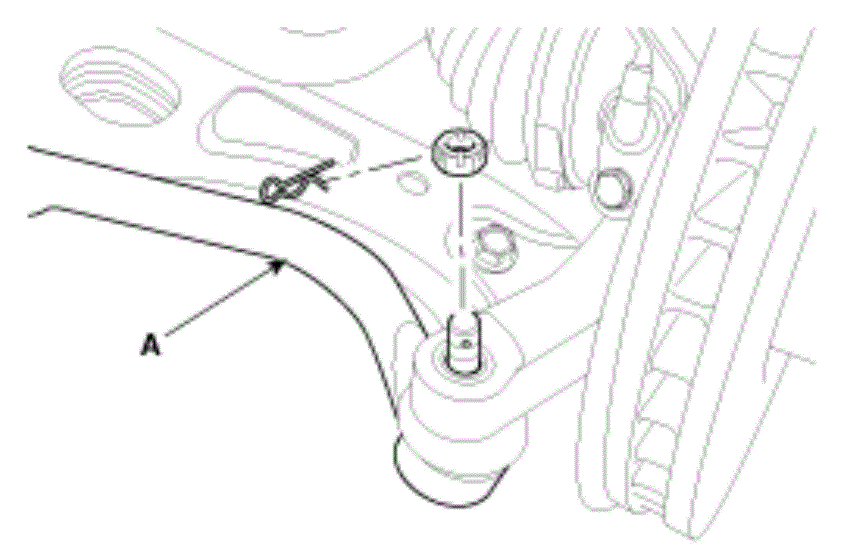

Remove the split pin and castle nut to disconnect the tie-rod end (A) from the front knuckle.
Tightening torque:

23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 17.4 ~ 24.6lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

Remove the front lower arm from the front knuckle using the SST (0K545-A9100).

After removing bolts from the front knuckle, install and tighten the sub body bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

Tighten bolt (B) of the sub body bolt to broaden the gap of the front knuckle.

Courtesy of KIA MOTORS AMERICA, INC.

Install the safe wire (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Install a safe wire on the front strut to prevent dropping the SST and hurting technicians.

Install the main body, between the front strut and the lower arm.

Courtesy of KIA MOTORS AMERICA, INC.

To avoid the main body coming off, install a fixing clamp (A) beside the main body.

Courtesy of KIA MOTORS AMERICA, INC.

After installing a fixing clamp, rotate the handle (B) clock wise till the clamp is fixed on a lower arm.

Courtesy of KIA MOTORS AMERICA, INC.

Tighten a main body bolt (A) of the slowly and remove the lower arm from the front knuckle.

Courtesy of KIA MOTORS AMERICA, INC.

Remove the roll rod stopper bolt (A).
Tightening torque:

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0lb-ft)

CAUTION: Bolt (A) is not reusable as it is a special bolt.

Courtesy of KIA MOTORS AMERICA, INC.

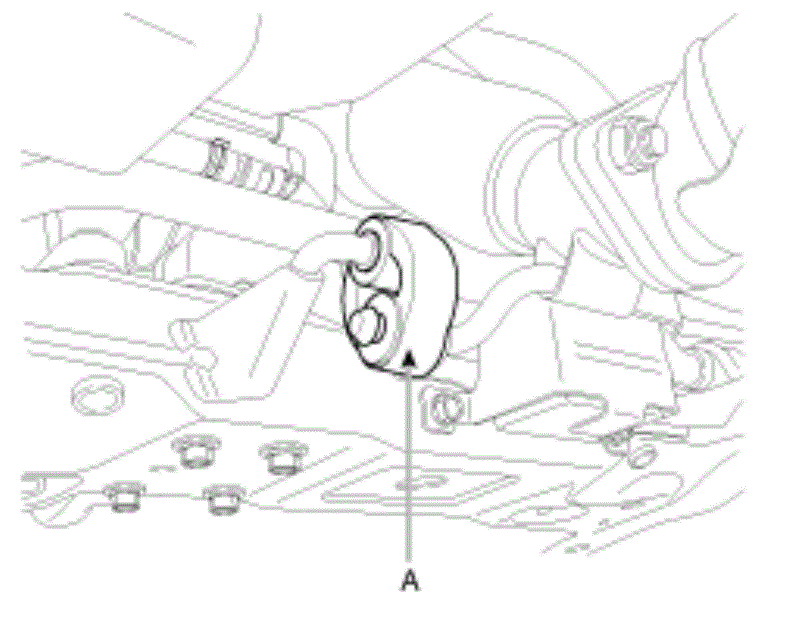

Disconnect the muffler rubber hanger (A).

Courtesy of KIA MOTORS AMERICA, INC.
Loosening the bolt (A) and nut (B) and then remove the sub frame.
Tightening torque:

156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
After loosening four bolts (A), remove the stabilizer bar (B).
Tightening torque:

44.1 ~ 53.9 N.m (4.5 ~ 5.5 kgf.m, 32.5 ~ 39.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
After loosening the bolt (A) and nut (B), remove the heat protector.
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
After loosening the bolt, remove the steering gear box (A).
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
After loosening the bolt, remove the roll rod stopper (A).
Tightening torque:

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the front alignment.
(Refer to Front Suspension System - "FRONT ALIGNMENT ")
