Variant coding procedure

  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON"
  4. Select "Vehicle S/W management" on KDS.
  5. Perform "Clutch Learning Reset" in "Vehicle S/W management" with KDS.
  6. Clear any DTCs stored in the system with KDS.

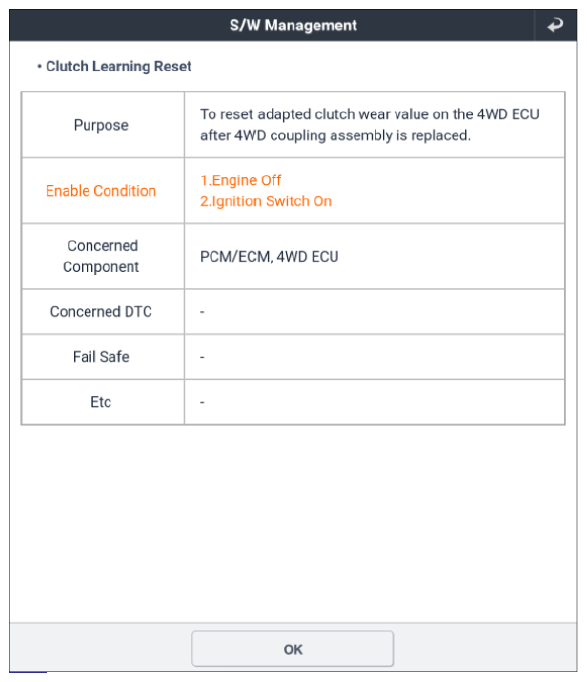

G12841222Courtesy of KIA MOTORS AMERICA, INC.

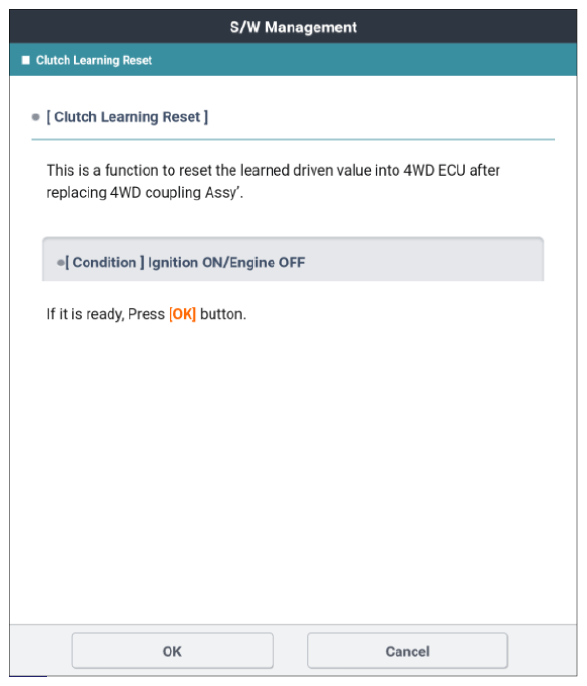

G12841223Courtesy of KIA MOTORS AMERICA, INC.
G12841224Courtesy of KIA MOTORS AMERICA, INC.
