Variant Coding Procedure
- Ignition switch "OFF"
- Connect KDS to Data Link Connector (DLC).
- Ignition switch "ON"
- Select "Vehicle S/W management" on KDS.

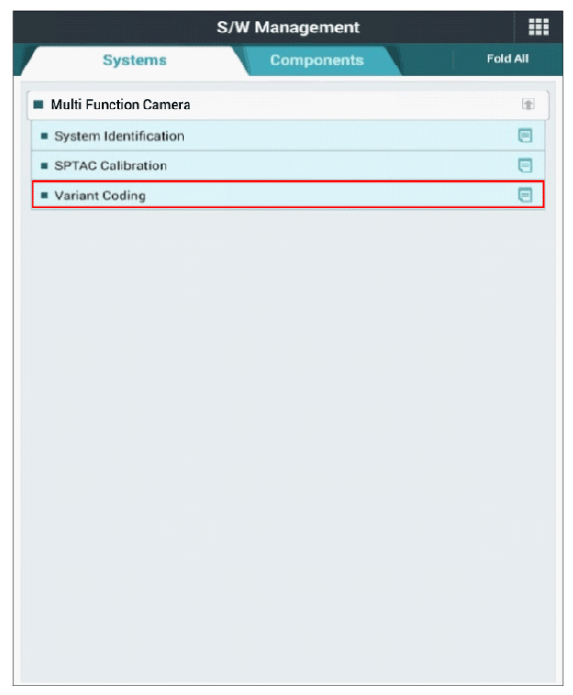

- Perform

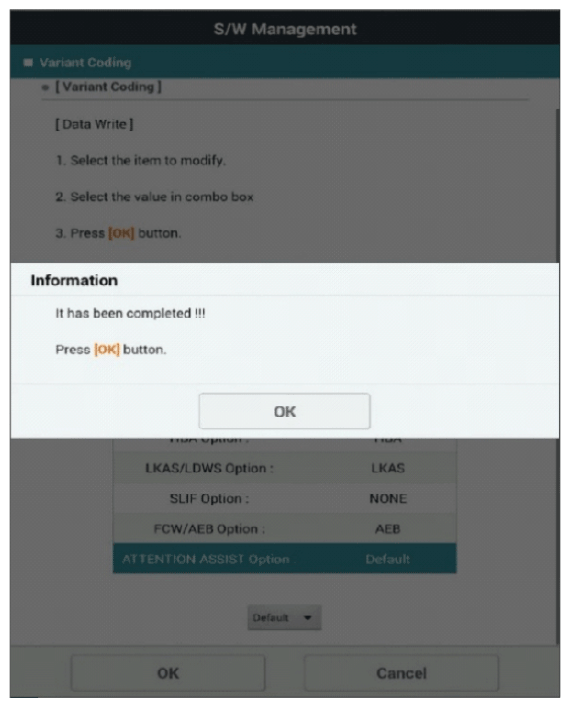

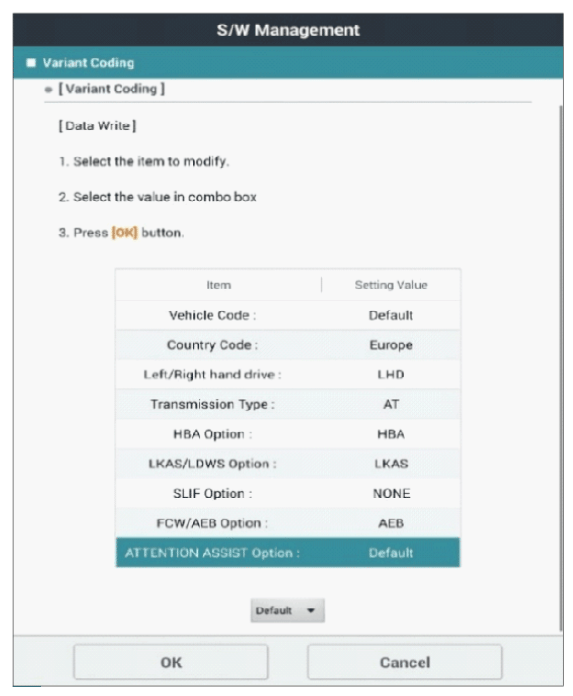

"LKAS/LDWS Variant Coding" in "Vehicle S/W management" with KDS.
- Clear any DTCs stored in the system with KDS.
- Re-check DTC in the system with KDS.
- Did the same DTC is stored in the system?
YES
- Carefully re-do this troubleshooting guide steps.
- If no problems still occurs, replace LDWS ECU and then go to "VERIFICATION OF REPAIR " procedure.
NO
- Fault might be caused by not performing variant coding after LDWS ECU replacement. Go to "VERIFICATION OF REPAIR " procedure.
