Assist Power Window Switch
>>

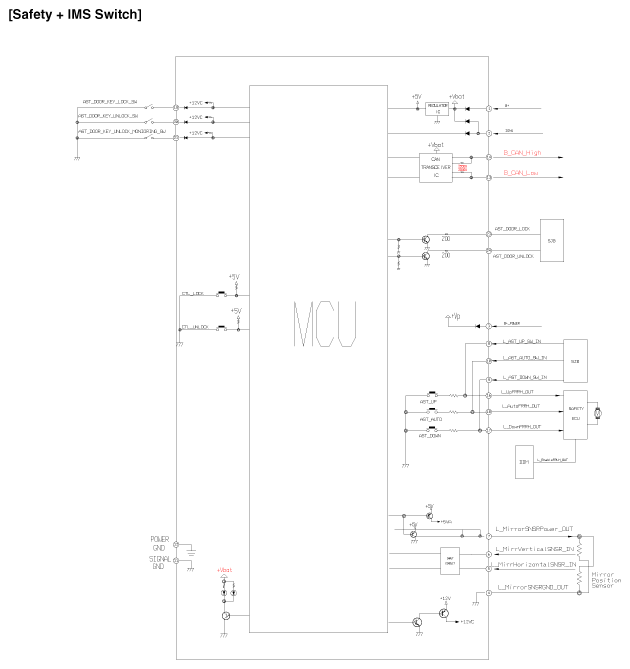

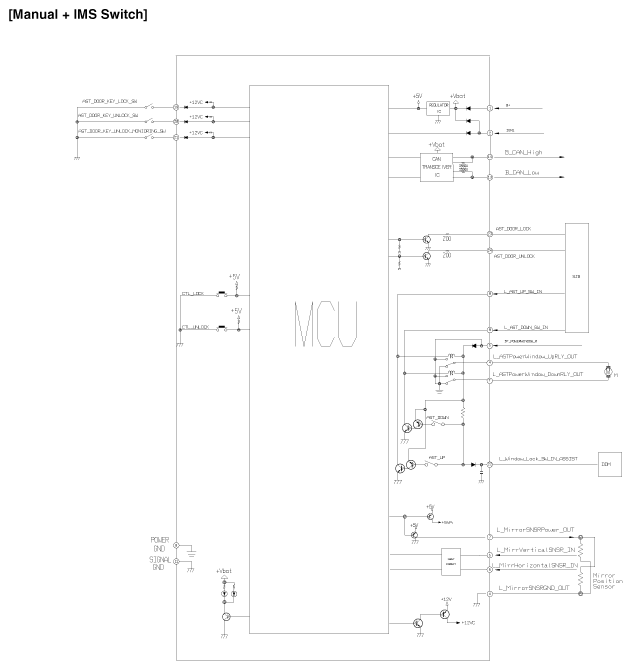

[Assist Power Window Module (ADM)]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[Assist Power Window Module (ADM)]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
