Section 131 (Cluster Module Diagnosis)
>>
DTC B1008-55: MDPS Present Error - Coding Code Error
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

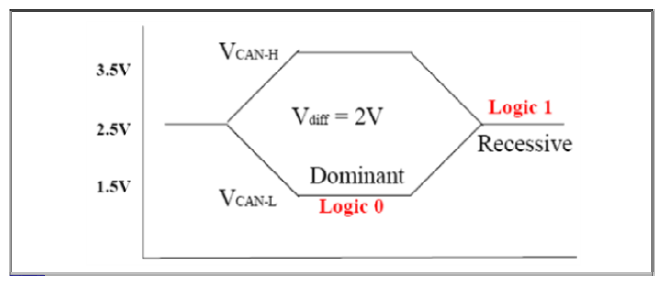

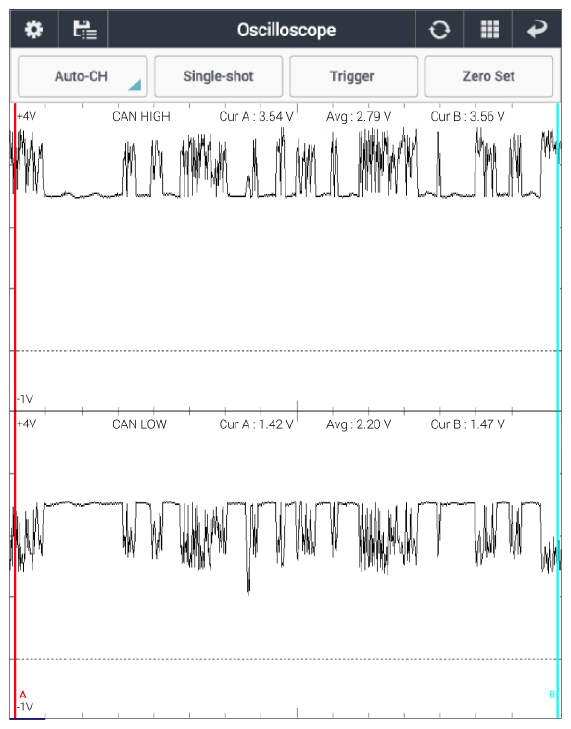

Signal Waveform & Data
WARNING:
This page is about a different car, the 2020 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
