Smart Cruise Control (SCC) Radar Alignment

WARNING: This page is about a different car, the 2020 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Stop the vehicle horizontally at a flat place.
NOTE:

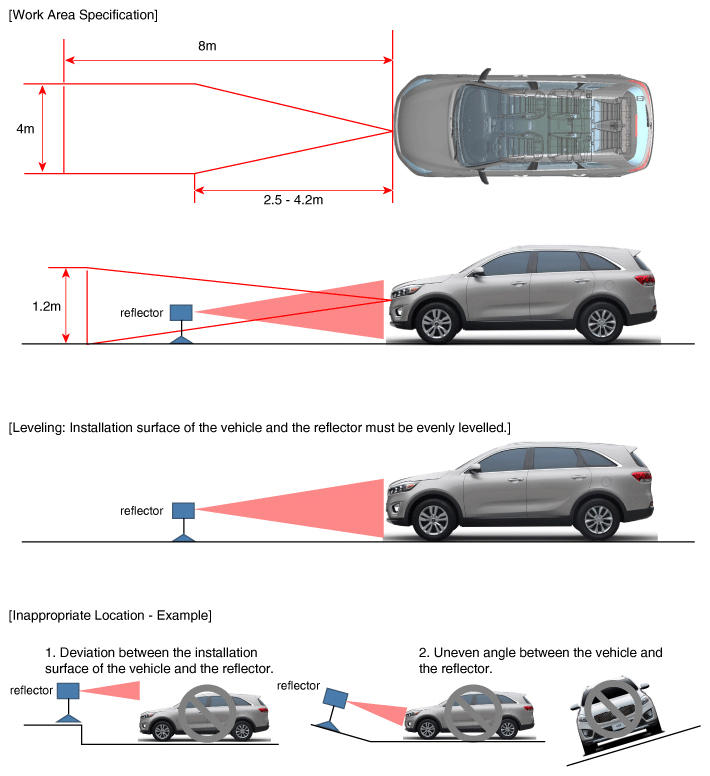

- Adjustment may not be accurate if the installation surface height and angle of the vehicle and reflector are different.
- Perform in an area with minimum clearance of 8m front, 4m sides, and 1.2m above the vehicle.
- Remove heavy objects from inside of the vehicle (seating area and trunk).
- Ensure that all tires are filled with spec air pressure.
- Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where sensor alignment is performed.
- Be sure that the vehicle is not moved and free from vibration when performing sensor alignment (getting in/out or opening/closing doors).
- Check that radiator grill and sensor cover is not dirty.
- Check that the wheel alignment is normal.
- Do not turn OFF the power when performing sensor alignment.
- Power supplied to the radar sensor must be between 9V-16V.
- Temperature in the area where sensor alignment is performed must be between -30-60°C.
Courtesy of KIA MOTORS AMERICA, INC.

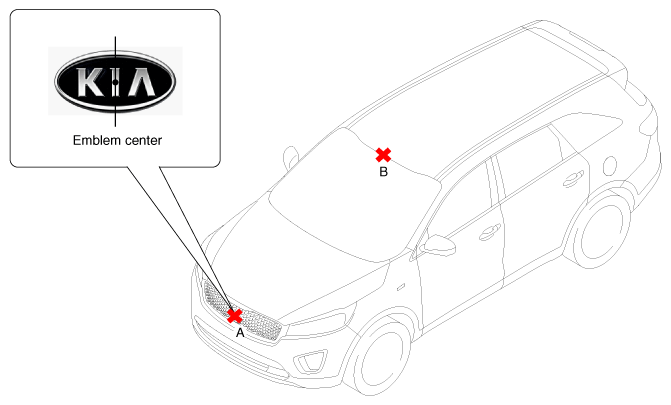

Mark the center point of emblem (A) and the center point on top of wind glass (B).

Courtesy of KIA MOTORS AMERICA, INC.
Connect the SCC Calibration Laser (SST No.: 09964-C1200) to the tripod (SST No.: 09964-C1300).

Courtesy of KIA MOTORS AMERICA, INC.

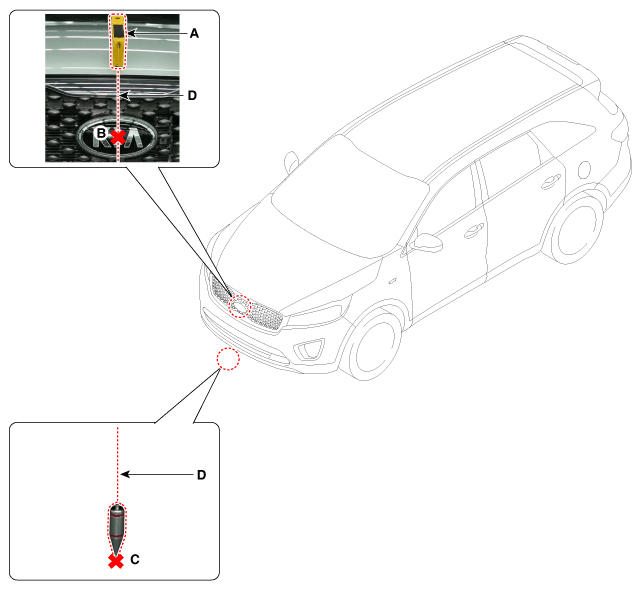

By using the SCC Calibration Reflector [SST No.: 09964-C1100] (A), adjust the wire (D) so that the center point of emblem (B) and the center point on the ground (C) are perpendicular to each other.

Courtesy of KIA MOTORS AMERICA, INC.

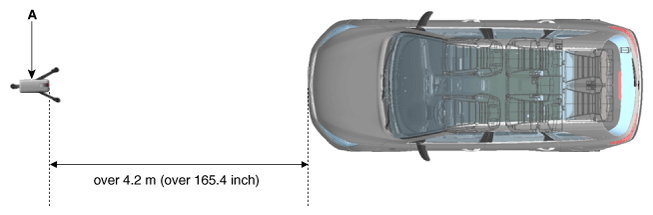

Install the vertical/horizontal laser [SST No.: 09964-C1200] (A) at over 4.2 m (over 165.4 inch) to the front of the vehicle.

Courtesy of KIA MOTORS AMERICA, INC.

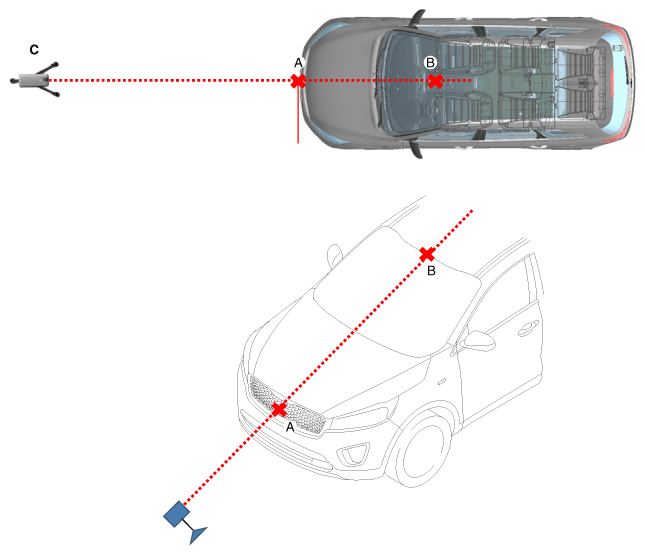

Match the vertical line of laser to (A) and (B) using the vertical/horizontal laser (C) [SST No.: 09964-C1200].

Courtesy of KIA MOTORS AMERICA, INC.

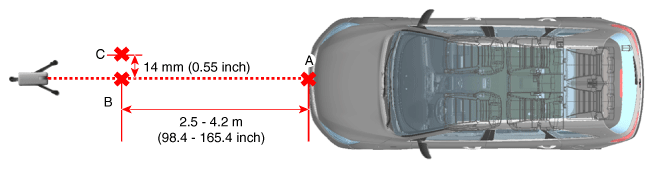

Mark (B) located in 2.5-4.2 m (98.4 - 165.4 inch) from (A) in front of the vehicle.
Mark (C) at the place which is 14 mm (0.55 inch) away from (B) to the left in vertical direction.

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the SCC Calibration Laser (SST No.: 09964-C1200) from the tripod (SST No.: 09964-C1300).
Connect the reflector (SST No.: 09964-C1100) to the tripod (SST No.: 09964-C1300) and set the reflector center height to 388 mm (15.3 inch)

Courtesy of KIA MOTORS AMERICA, INC.
Set the reflector horizontal using the leveler which is built in the tripod (SST No.: 09964-C1300).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Balance the level so that the bubble in the level is set between the spec lines.

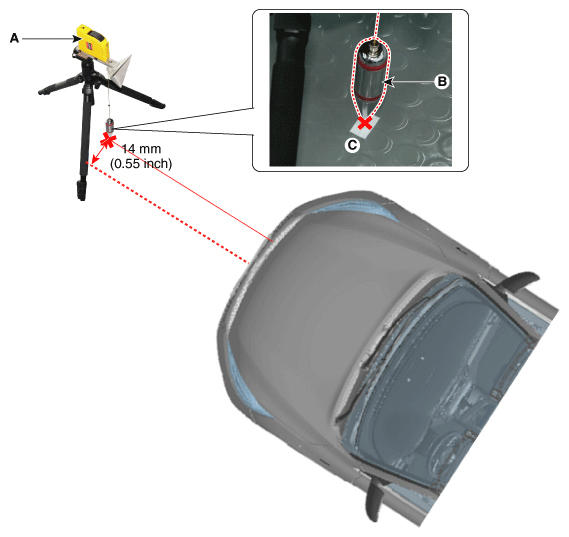

Install the reflector (A) to match the weight (B) with the point (C).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Visually check that the reflecting side of the reflector is levelled with the front of the vehicle.
Check again the radar sensor and the surface of front bumper for the following items with the eyes.
NOTE:
- Make sure that there is no debris, or reflecting object on the surface of the radar.
- Make sure that there is no debris, or reflecting object on the radiator grill.
Connect the KDS to the DLC of the vehicle and start sensor alignment.
NOTE: If the engine is running, the vibration may cause inaccurate sensor alignment, so perform sensor alignment in IG ON mode.

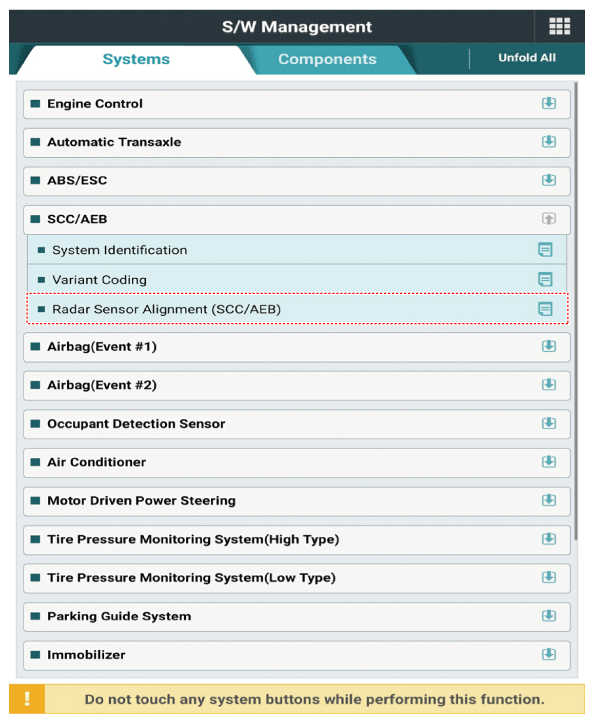

After correctly selecting the vehicle model, select "SCC Alignment" from the auxiliary functions in KDS Menu.

Courtesy of KIA MOTORS AMERICA, INC.

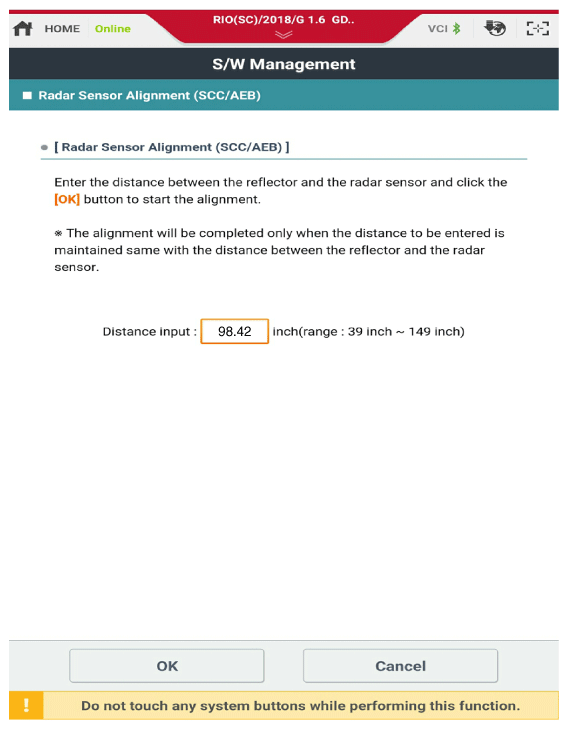

Perform sensor alignment by following the directions shown in the KDS monitor.

Courtesy of KIA MOTORS AMERICA, INC.
In case of sensor alignment failure, check the alignment conditions. Turn the ignition key OFF, then re-perform the sensor alignment procedure.
