Smart Key Code Saving

Connect the DLC cable of KDS to the Data Link Connector in Driver Side Crash Pad Lower Panel, turn the power ON KDS.

Fig 1: Locating Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart Key Code Saving".

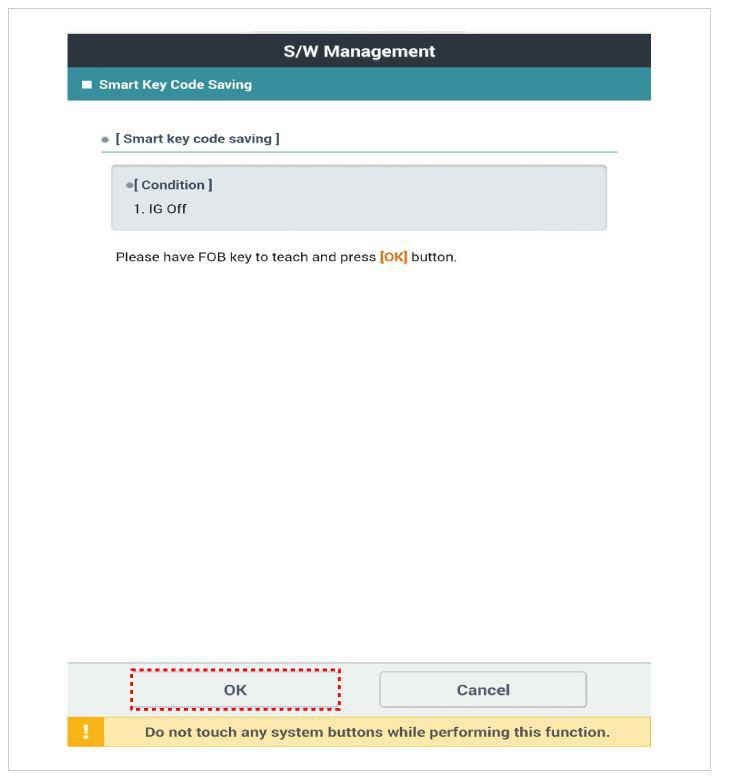

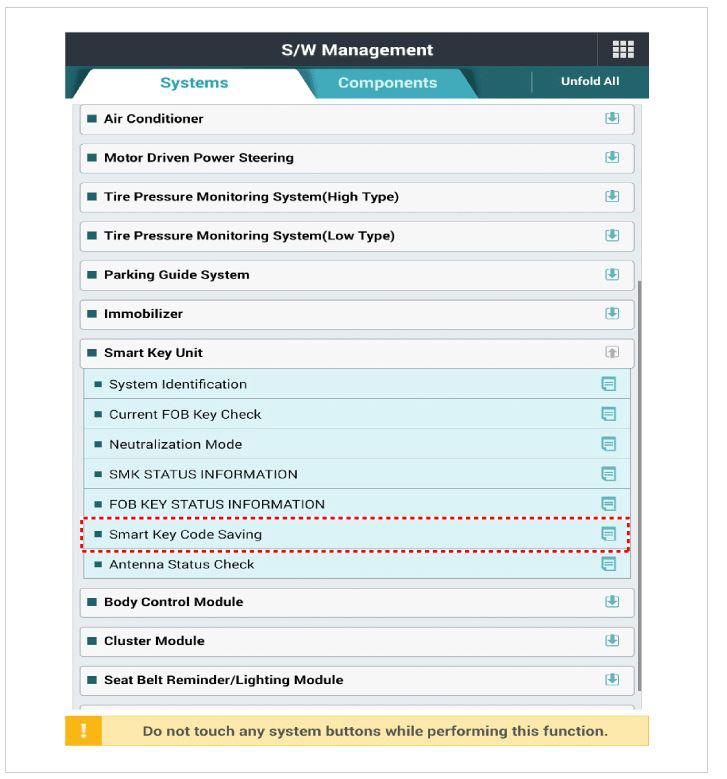

Fig 2: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

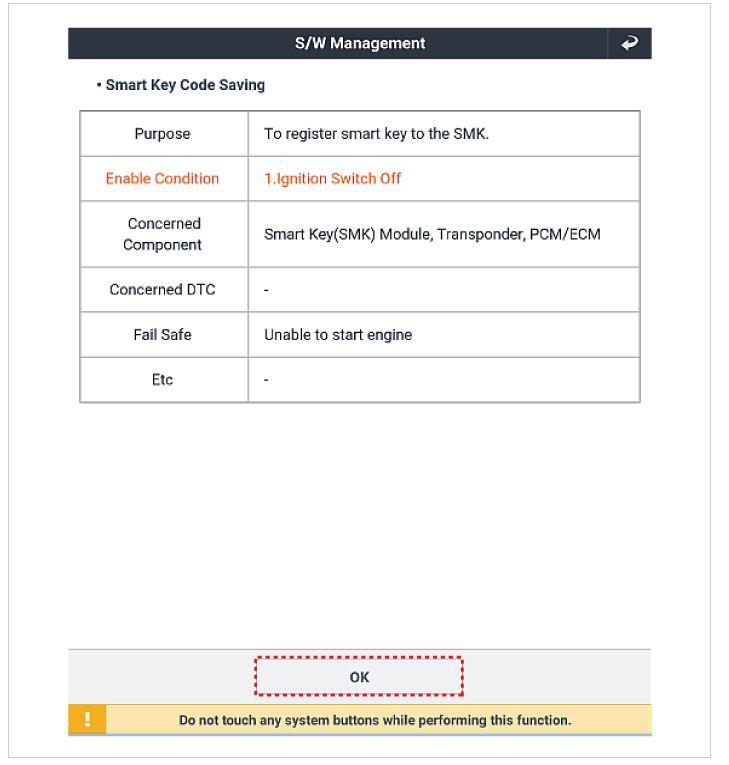

Fig 3: Screen Display - Smart Key Teaching

Courtesy of KIA MOTORS AMERICA, INC.

After selecting "Smart Key Teaching" menu, push "Enter" Key, then the screen will be displayed below.

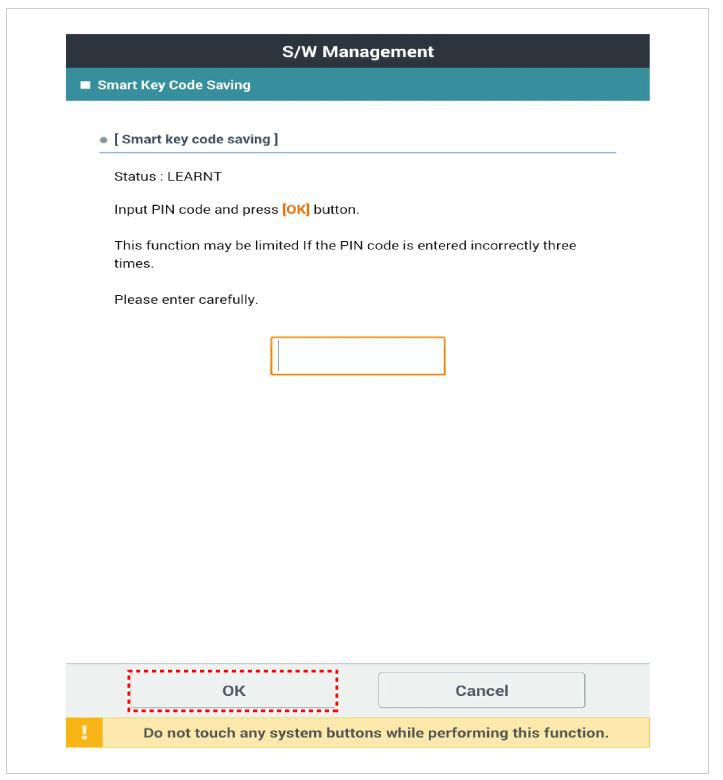

Fig 4: Screen Display - Input Pin Code For First Key Teaching (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

After having the Teaching Smart Key, push "ENTER" Key.
Input the "Pin Code" for first key teaching.

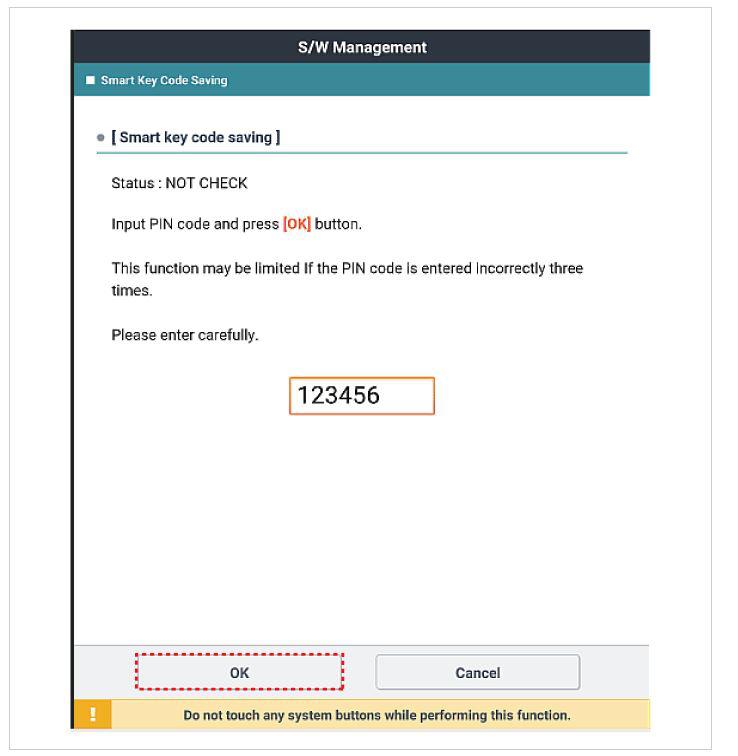

Fig 5: Screen Display - Input Pin Code For First Key Teaching (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

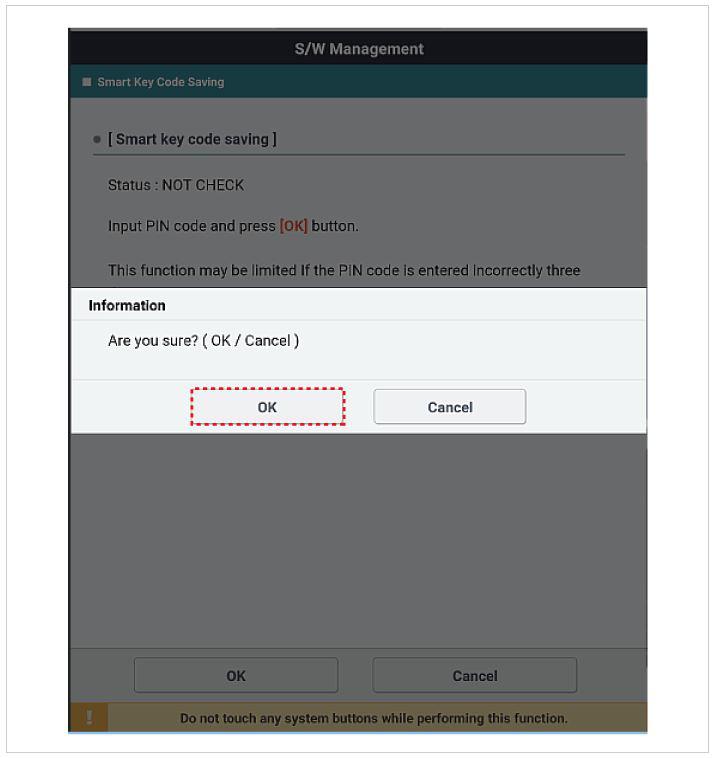

Fig 6: Screen Display - First Key Teaching Completed (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Screen Display - First Key Teaching Completed (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

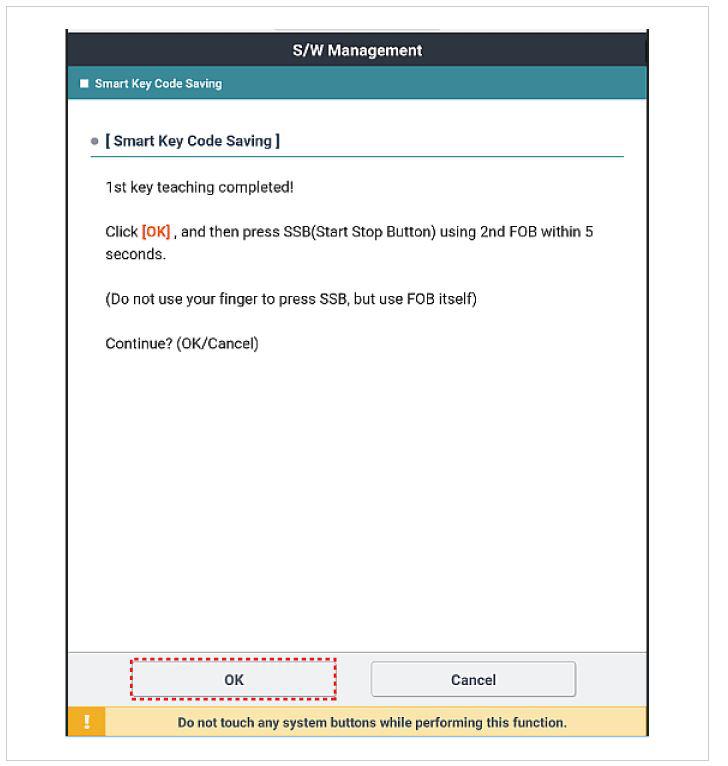

Confirm the message "First Key Teaching Completed".

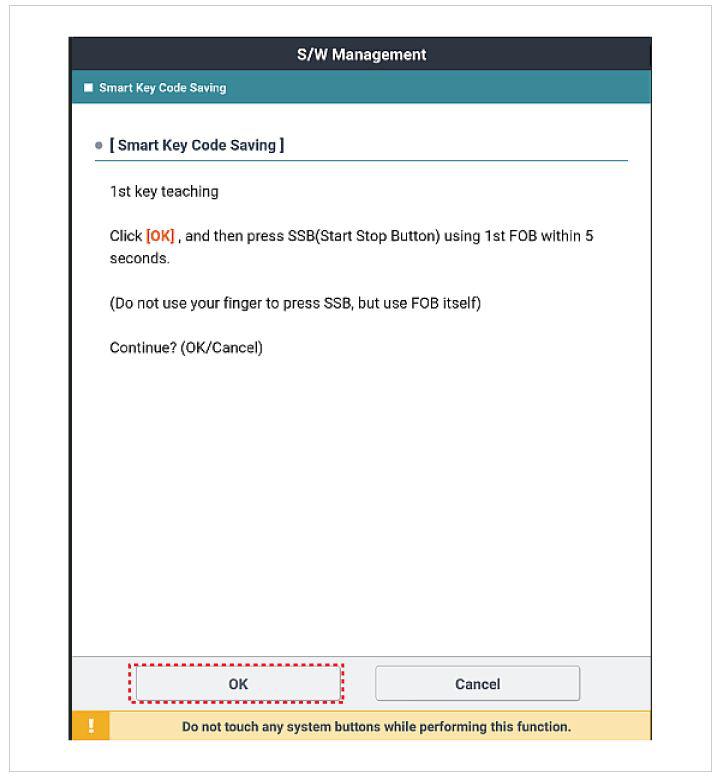

Fig 8: Screen Display - First Key Teaching Completed (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with Smart Key within 5 sec after pressing "OK".

Fig 9: Screen Display - First Key Teaching Completed (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

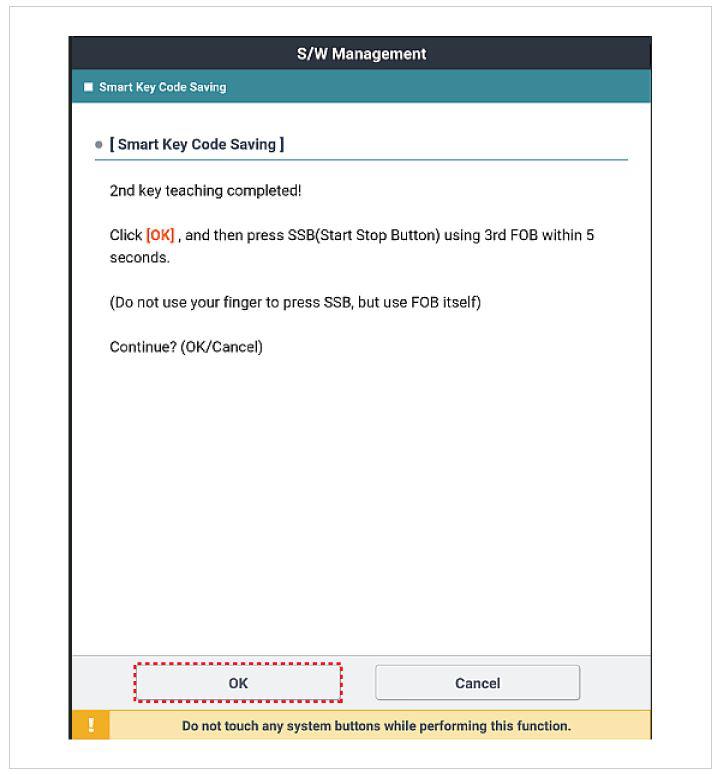

Confirm the message "Second Key Teaching Completed".

Fig 10: Screen Display - Second Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.

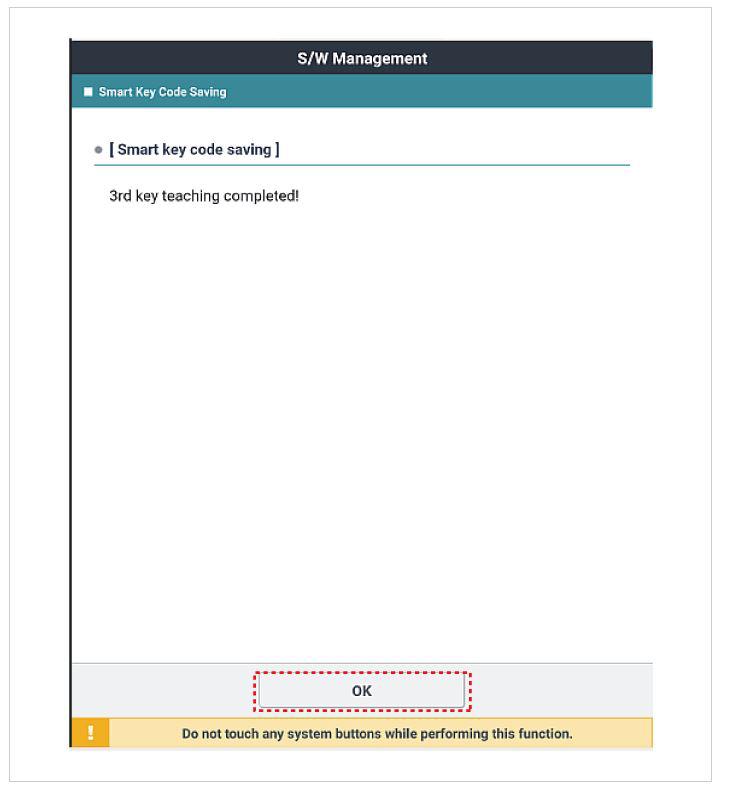

Fig 11: Screen Display - Second Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.

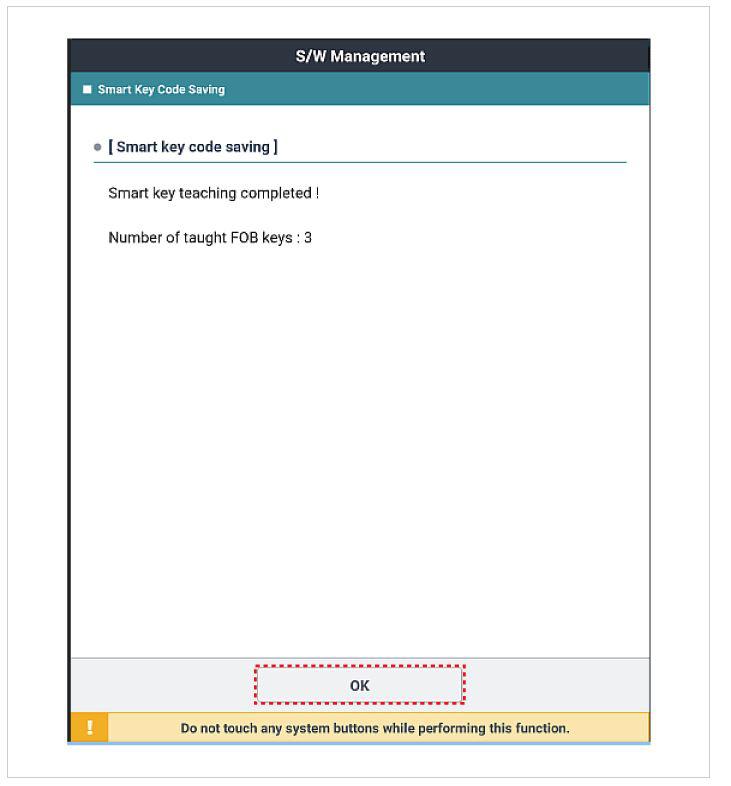

Then the screen will be displayed below when Key Teaching process is completed.

Fig 12: Screen Display - Second Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
