Cluster Module Variant Coding

Verify vehicle options and have VIN code in hand.
Perform "CLU Variant Coding" in the "Vehicle S/W Management " with KDS/GDS.
Check for DTCs in the system.
Is the DTCs stored in the system as a present?

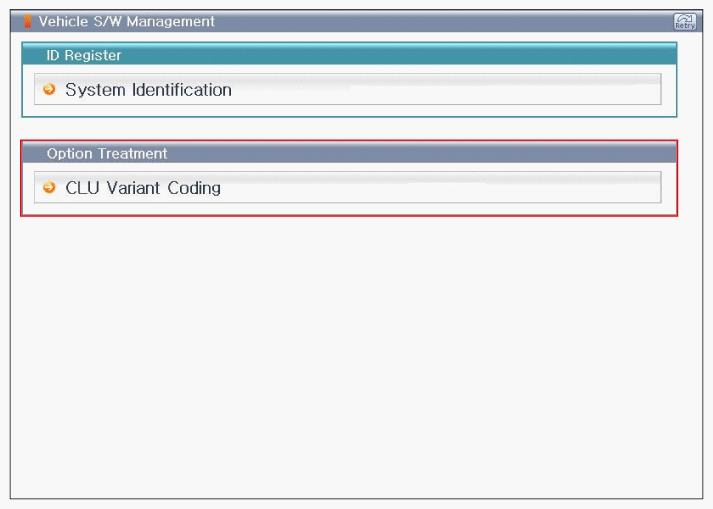

Fig 1: Scantool Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

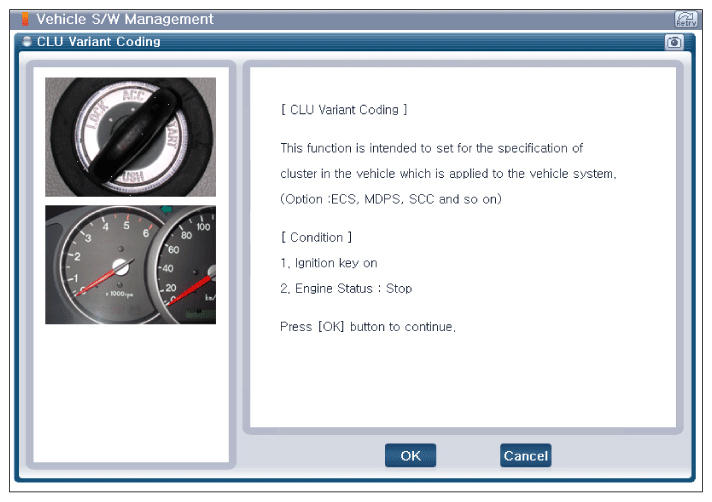

Fig 2: Scantool Display - Cluster Module Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.

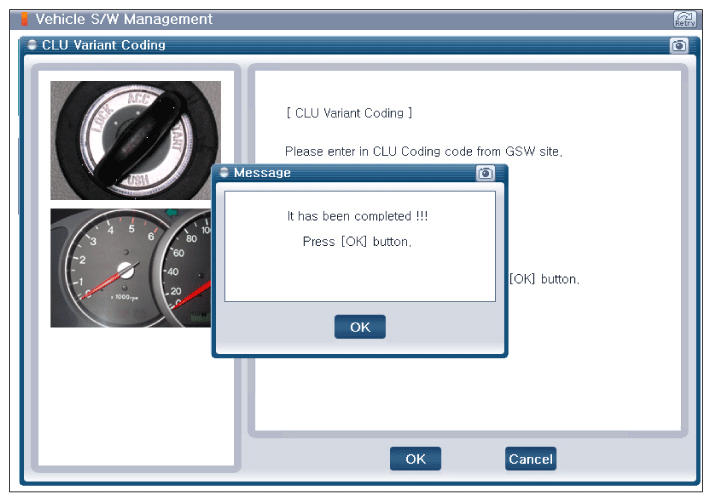

Fig 3: Scantool Display - Cluster Module Variant Coding (Completed)
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management " with KDS/GDS again, and then, go to "Verification of Vehicle Repair " procedure.
NO
- Go to "Wiring Inspection " procedure.
