Components And Components Location: Components

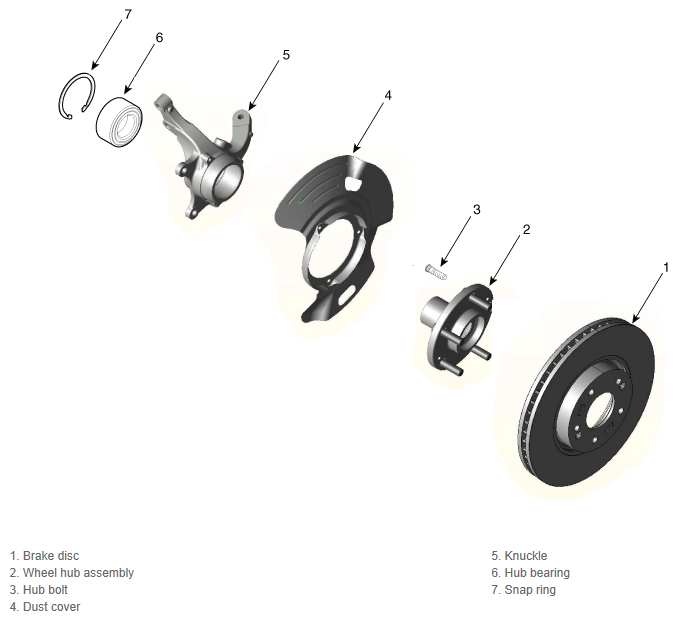

Fig 1: Exploded View Of Front Hub/Knuckle Components
G12227800Courtesy of KIA MOTORS AMERICA, INC.
