Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

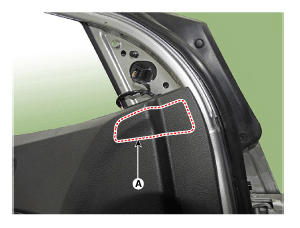

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the tweeter speaker connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

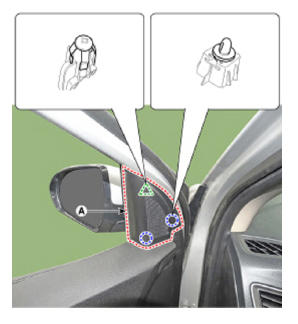

Using a screwdriver or remover, remove the outside rear view mirror cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the outside rear view mirror connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts, remove the outside rear view mirror (A).
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin - type retainers).
