Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Wear gloves to protect hands from injury.

Information

When removing and installing the liftgate, an assistant is needed.

Remove the liftgate trim.
(Refer to Liftgate - "LIFTGATE TRIM ")
Using a screwdriver, lift the socket clips (A) up slightly on both ends of the liftgate lifter (B).

Courtesy of HYUNDAI MOTOR AMERICA

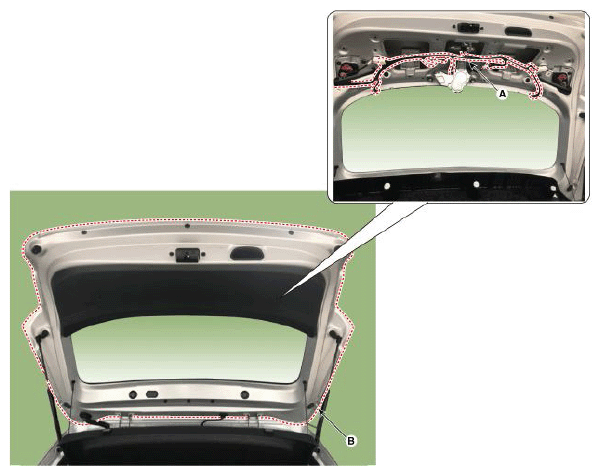

Disconnect the connectors and liftgate main wiring harness (A) and washer nozzle.
After loosening the mounting bolts, then remove the liftgate assembly (B).
Tightening Torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.

NOTE:

Make sure the liftgate locks/unlocks and opens/closes properly.
Adjust the liftgate alignment.
Make sure the connectors are connected in properly.
Replace any damaged clips (or pin-type retainers).
