Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Put a flat tool (Ø4mm) into a guide hole located in the bottom of steering wheel and press a spring.
CAUTION:
- When put a tool into a hole, make sure not to damage an airbag cushion by a tool.

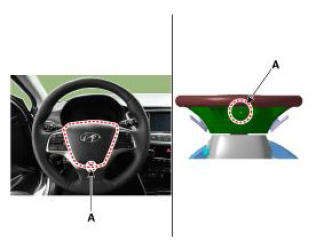

Turn a steering wheel anti-clockwise, so make a guide hole (A) displayed on the right side.
Put a tool into a hole (A) and bend back a fixed DAB spring.

Make sure to pull DAB cover when bend back the spring.
NOTE:
- Pull the DAB cover when disengaging the DAB spring because the DAB does not pop up automatically.
Turn a steering wheel clockwise. Put a tool into a hole (B) and bend back a fixed DAB spring. Make sure to pull DAB cover when
CAUTION:
- Be careful not to put a tool into a wrong hole.
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the steering wheel and steering wheel column shroud
(Refer to Steering System - "STEERING COLUMN SHROUD PANEL ")
Disconnect the clock spring connector, then remove the clock spring.
