Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

Information

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")
Remove the cluster fascia panel.
(Refer to Cluster Pad - "CLUSTER FASCIA PANEL ")
Remove the heater & A/C Control Unit.
(Refer to Heating, Ventilation and Air Conditioning - "HEATER & A/C CONTROL UNIT (MANUAL) ")

(Refer to Heating, Ventilation and Air Conditioning - "HEATER & A/C CONTROL UNIT (FATC) ")
Remove the glove box upper cover housing assembly.
(Refer to Crash Pad - "GLOVE BOX UPPER COVER HOUSING ")
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the steering column shroud lower panel.
(Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")
Remove the multifunction switch assembly.
(Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")
Remove the instrument cluster.
(Refer to Body Electrical System - "INSTRUMENT CLUSTER )
Disconnect the security lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the crash pad fascia panel (A)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting nuts (A).

Courtesy of HYUNDAI MOTOR AMERICA

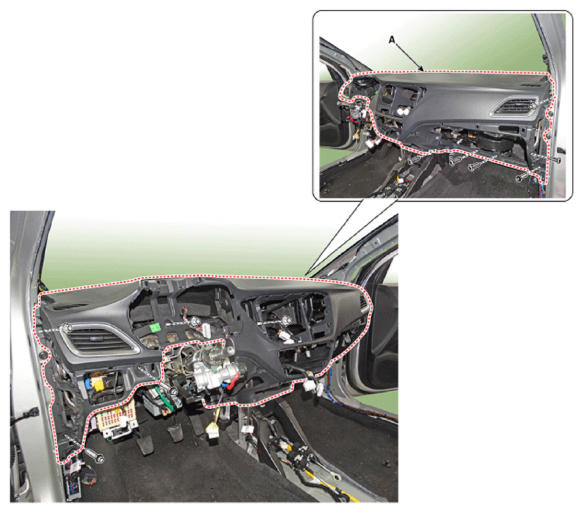

Loosen the mounting bolts and nuts and remove the main crash pad assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the passenger's airbag connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Make sure that each of the assembly components operates properly.
- Replace any damaged clips (or pin - type retainers).
