Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. Connect self-diagnosis connector (16 pins) located in the lower of driver side crash pad to self-diagnosis device.

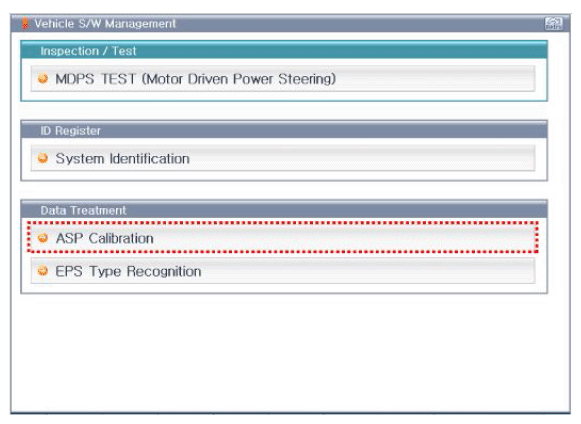

  3. Conduct the "ASP Calibration".
    G12600888Courtesy of HYUNDAI MOTOR AMERICA

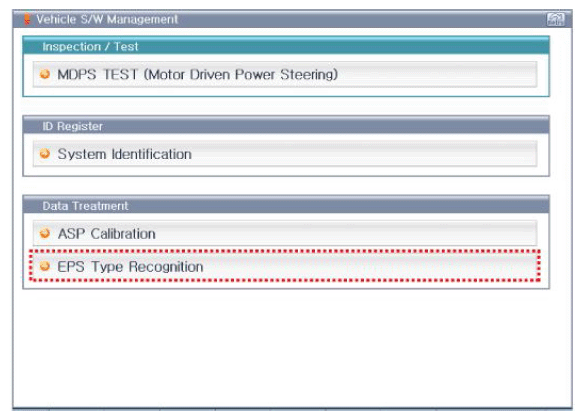

  4. Conduct the "EPS Type Recognition".
G12600889Courtesy of HYUNDAI MOTOR AMERICA
