Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Put a flat tool (Ø4mm) into a guide hole located in the bottom of steering wheel and press a spring.
    G12600835Courtesy of HYUNDAI MOTOR AMERICA
    G12600836Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • When put a tool into a hole, make sure not to damage an airbag cushion by a tool.
  3. Turn a steering wheel anti-clockwise, so make a guide hole (A) displayed on the right side. Put a tool into a hole (A) and bend back a fixed DAB spring. Make sure to pull DAB cover when bend back the spring.
    G12600837Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Pull the DAB cover when disengaging the DAB spring because the DAB does not pop up automatically.
  4. Turn a steering wheel clockwise. Put a tool into a hole (A) and bend back a fixed DAB spring. Make sure to pull DAB cover.
    G12600838Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Be careful not to put a tool into a wrong hole.

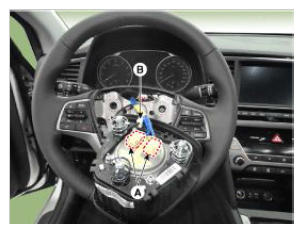

  5. Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).
    G12600839Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • The removed airbag module should be stored in a clean, dry place with the pad cover facing up.

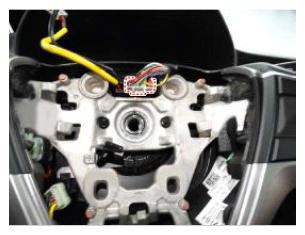

  6. Disconnect the clock spring connector.
    G12600840Courtesy of HYUNDAI MOTOR AMERICA

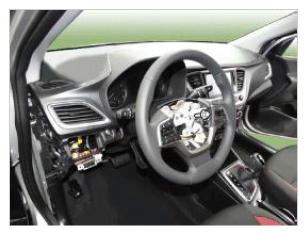

  7. Remove the steering wheel by loosening the lock bolt (A).
    G12600841Courtesy of HYUNDAI MOTOR AMERICA

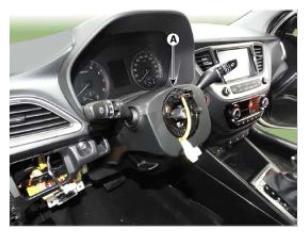

  8. Remove the steering column upper shroud (A).
    G12600842Courtesy of HYUNDAI MOTOR AMERICA

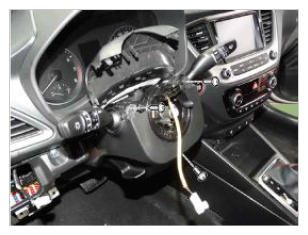

  9. Loosen the screw and then remove the lower shroud.
    G12600843Courtesy of HYUNDAI MOTOR AMERICA

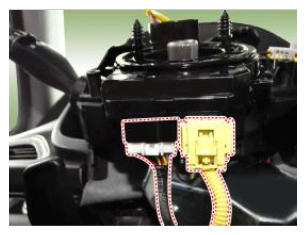

  10. Disconnect the connector.
    G12600844Courtesy of HYUNDAI MOTOR AMERICA

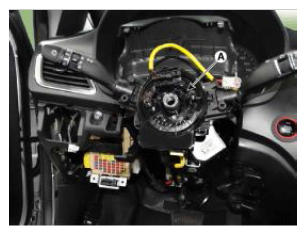

  11. Remove the clock spring (A).
    G12600845Courtesy of HYUNDAI MOTOR AMERICA

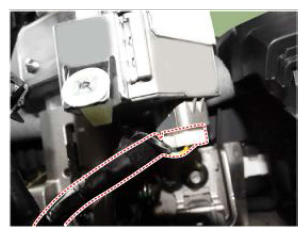

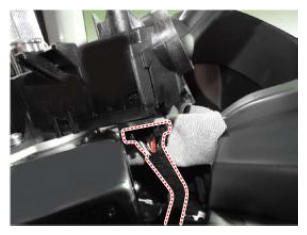

  12. Disconnect the multifunction switch connector.
    G12600846Courtesy of HYUNDAI MOTOR AMERICA
    G12600847Courtesy of HYUNDAI MOTOR AMERICA

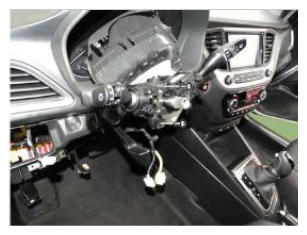

  13. Loosen the screw and then remove the multifunction switch.
    G12600848Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD ")

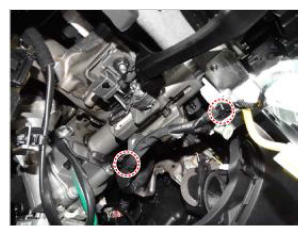

  15. Remove the fixed clip and then remove the wiring from the steering column.
    G12600849Courtesy of HYUNDAI MOTOR AMERICA

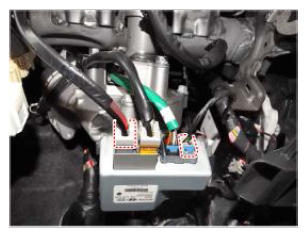

  16. Disconnect MDPS ECU connector.
    G12600850Courtesy of HYUNDAI MOTOR AMERICA

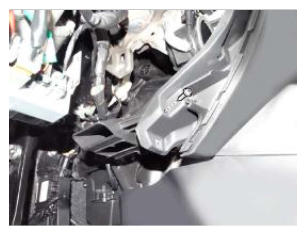

  17. Remove the shower duct.
    G12600851Courtesy of HYUNDAI MOTOR AMERICA

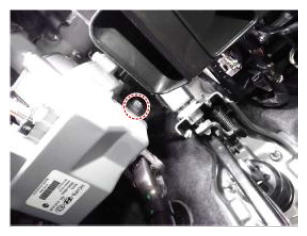

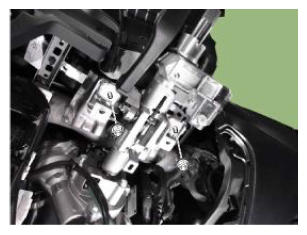

  18. Remove the steering column & EPS unit assembly by loosening the mounting bolt and nuts.

    Tightening Torque

    Nut: 25.0 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

    Bolt: 44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)

    G12600852Courtesy of HYUNDAI MOTOR AMERICA
    G12600853Courtesy of HYUNDAI MOTOR AMERICA

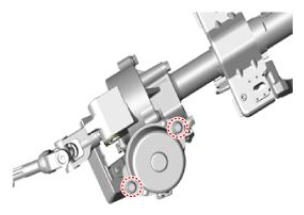

  19. Remove the motor by loosening the bolts and then replace the new one.

    Tightening Torque:

    14.7 - 21.6 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb-ft)

    G12600854Courtesy of HYUNDAI MOTOR AMERICA
  20. Install in the reverse order of removal.
  21. Conduct the "ASP Calibration" and "EPS Type Recognition" by GDS below.

    (Refer to MDPS motor - "DIAGNOSIS WITH GDS ")

  22. Remove the DTC.
  23. Turn off the IGN switch and wait for 20 seconds or more. Then check the operation after starting the engine.
