Front Wheel Alignment: Toe

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

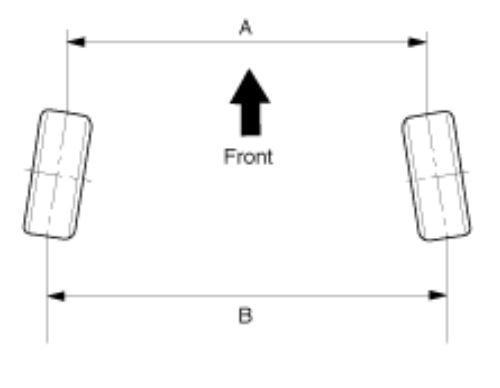

G12600732Courtesy of HYUNDAI MOTOR AMERICA

B - A > 0: Toe-In (+)

B - A < 0: Toe-Out (-)
