Rear Wheel Alignment: Toe
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of HYUNDAI MOTOR AMERICA
|

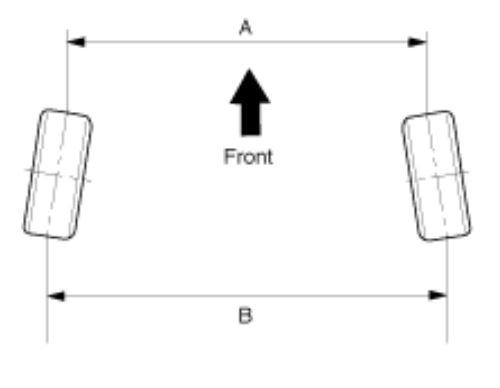

B - A > 0: Toe-In (+)
B - A < 0: Toe-Out (-)
Toe is preset at the factory, so it does not need to be adjusted. If the toe is not within the standard value, replace or repair the damaged parts and then inspect again.
| Toe-In |
Total |
0.3° ± 0.3° |
| Individual |
0.15° ± 0.15° |
