Repair Procedures: Installation
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
NOTE:

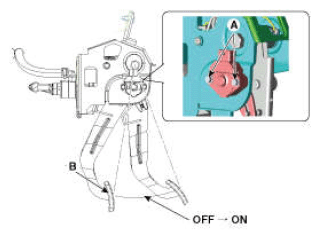

- Fixing the clutch pedal end of (B).
- Lightly tighten the bolt after the fixed to the clutch pedal hook to the switch lever.
- Turn the ignition lock switch lever in OFF → ON position and then tighten the bolts (A) with specified torque.
Clutch Pedal Operating Stroke (B)
: 121.8 mm ± 7.7 mm (4.7953 ± 0.3031 in.)
Tightening Torque:
2.0 - 3.9 N.m (0.2 - 0.4 kg.m, 1.4 - 2.9 lb.ft)
