Repair Procedures: Disassembly
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear cover (A).
- Loosen the mounting bolts (A) and disconnect the brush holder assembly (B).
- Remove the slip ring guide (A).
- Remove the pulley (A) using the special tool.
- Unsolder the 3 stator leads (A).

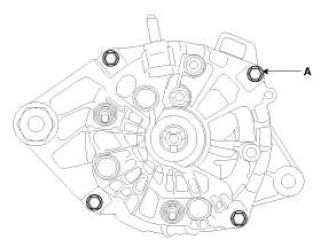

- Loosen the 4 through bolts (A).

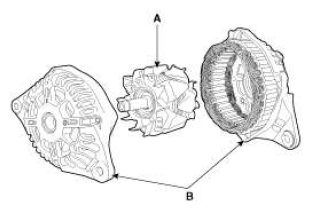

- Disconnect the rotor (A) and bracket (B).
- Reassembly is the reverse order of disassembly.
