Repair Procedures: Removal

1. Loosen the wheel nuts slightly.

   Raise the vehicle, and make sure it is securely supported.

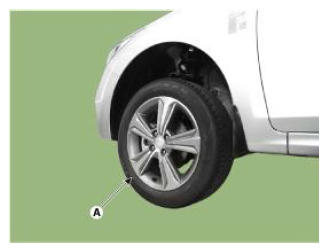

2. Remove the front wheel and tire (A) from the front hub.

   Tightening Torque:

   107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Be careful not to damage the hub bolts when removing the front wheel and tire.

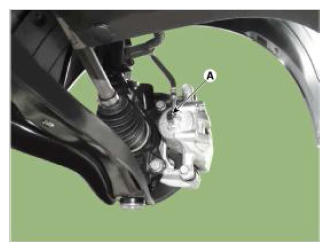

3. Disconnect the brake hose by loosening the bolt (A).

   Tightening Torque:

   24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

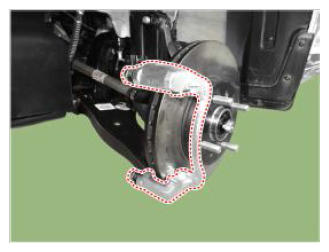

4. Remove the caliper body by loosening the guided rod bolt.

   Tightening Torque:

   21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

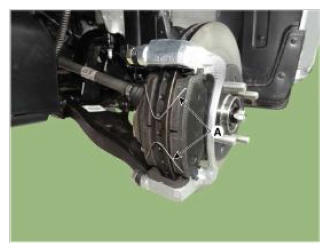

5. Remove the pad return spring (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Pad return springs must be replaced with new ones whenever pads are replaced.
   • Technicians should be careful not to deform pad return springs.
   • When pad return springs are deformed, it may cause improper braking, more fuel consumption.

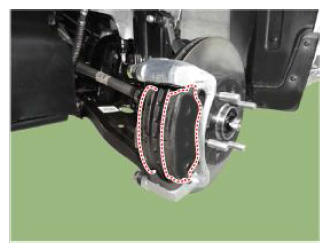

6. Remove the brake pad.

   Courtesy of HYUNDAI MOTOR AMERICA

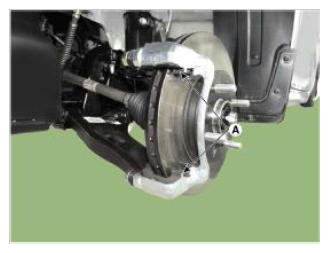

7. Remove the pad retainer (A).

   Courtesy of HYUNDAI MOTOR AMERICA

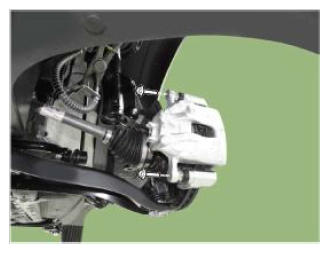

8. Remove the caliper carrier by loosening the caliper mounting bolts.

   Tightening Torque:

   78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

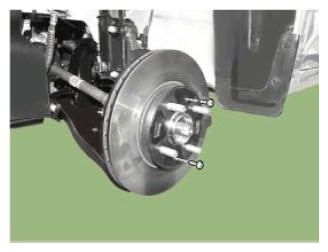

9. Loosen the screw and the remove the front disc.

Tightening Torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
