Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper.
  2. Install the dynamic damper.
  3. Install the dynamic damper band.

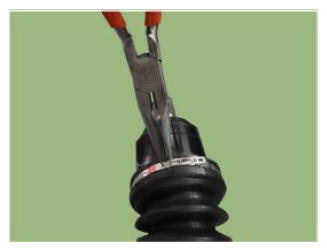

  4. Using the pliers, secure the TJ boot bands.
    G12600590Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the boot band.
  5. Install the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

  6. Install the Front Driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  7. Check the Front Alignment.

    (Refer to Suspension System - "FRONT WHEEL ALIGNMENT ")
