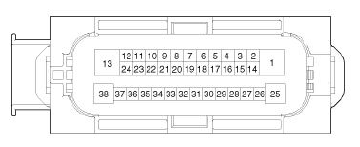

Terminal Function
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
| Wire No | Designation | Current | |
|---|---|---|---|
| max | min | ||
| 13 | Ground for recirculation pump | 39 A | 10 A |
| 1 | Voltage supply for pump motor | 39 A | 10 A |
| 25 | Voltage supply for solenoid valves | 15 A | 2 A |
| 38 | Ground for solenoid valves and ECU | 15 A | 2 A |
| 22 | Signal wheel speed sensor (FL) | 16.8 mA | 5.9 mA |
| 33 | Voltage supply for the active wheel speed sensor (RL) | 16.8 mA | 5.9 mA |
| 19 | Voltage supply for the active wheel speed sensor (RR) | 16.8 mA | 5.9 mA |
| 18 | Voltage supply for the active wheel speed sensor (FR) | 16.8 mA | 5.9 mA |
| 6 | Signal wheel speed sensor (FR) | 16.8 mA | 5.9 mA |
| 14 | C-CAN LOW | 30 mA | 20 mA |
| 34 | Voltage supply for the active wheel speed sensor (FL) | 16.8 mA | 5.9 mA |
| 20 | Signal wheel speed sensor (RL) | 16.8 mA | 5.9 mA |
| 32 | Voltage for HECU (IGN) | 1 A | 500 mA |
| 31 | Signal wheel speed sensor (RR) | 16.8 mA | 5.9 mA |
| 30 | Brake light switch | 10 mA | 5 mA |
| 26 | C-CAN HIGH | 30 mA | 20 mA |
| 27 | Wheel speed sensor | output Open | Drain - |
| 8 | ESP switch | 10 mA | 5 mA |
| 23 | Clutch switch (MT Only) | 10 mA | 5 mA |
| 10 | Parking Brake switch | 10 mA | 5 mA |
| 21 | L-CAN LOW | 30 mA | 20 mA |
| 9 | L-CAN HIGH | 30 mA | 20 mA |
| 16 | HAC | drive signal | 200 mA |
