Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

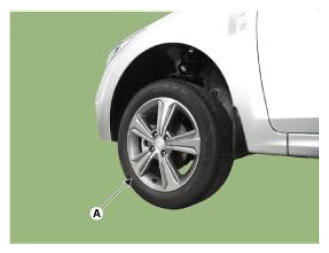

Remove the front wheel and tire (A) from the front hub.
Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the front wheel and tire.

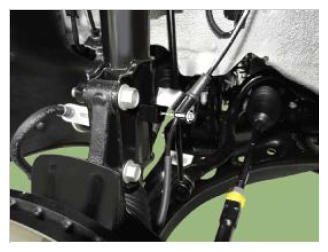

Loosen the mounting bolt and then remove the wheel speed sensor cable from the strut assembly.
Tightening Torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

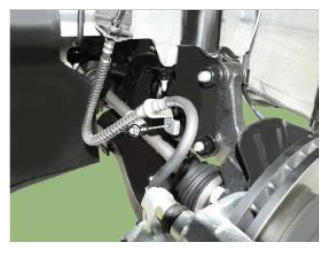

Loosen the mounting bolt and then remove the brake hose from the strut assembly.
Tightening Torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

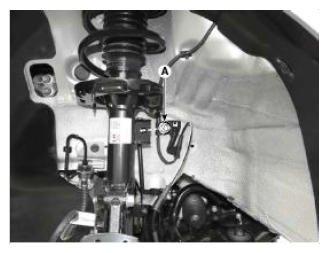

Disconnect the stabilizer link with the front strut assembly after loosening the nut (A).
Tightening Torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When loosening the nut (A), fix the outer hexagon of stabilizer bar link.
- Be careful not to damage the stabilizer link boots.
Remove the Cowl Top Cover. (Refer to Body - "COWL TOP COVER ")

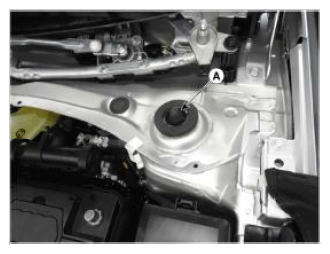

Remove the lock nut cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

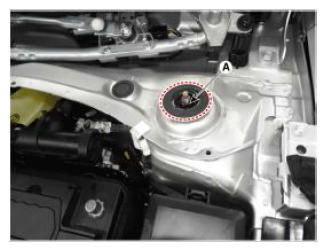

Loosen the upper strut mounting nut (A).
Tightening Torque:

68.6 - 78.5 N.m (7.0 - 8.0 kgf.m, 50.6 - 57.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

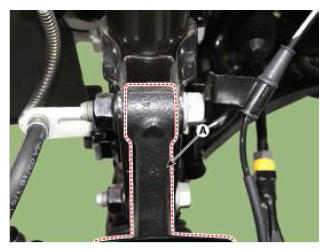

Remove the front strut assembly from the front knuckle (A).
Tightening Torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the driveshaft, front sub frame or stabilizer link.
Install the other parts in the reverse order of removal.
