Repair Procedures: Replacement
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery cable.
- Remove the Crash Pad.
(Refer to Body - "CRASH PAD ")
- Remove the connector.

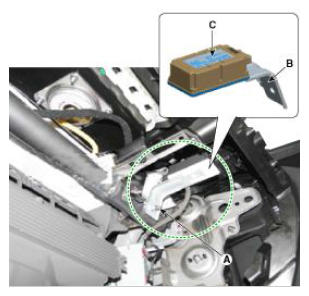

- Remove the bracket (B) and receiver (C) by loosening the nut (A).
Tightening Torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
- Install in the reverse order of removal.
- Reconnect the battery, and then turn on the ignition.NOTE:
- Firmly fasten the receiver connector until you hear a click.
- Replace the receiver, and then perform the learning process using a diagnostic instrument (GDS).
