Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve core and deflate the tire.
  2. Remove the side of the tire bead area from the wheel using tire changing machine.
    G12600740Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
    • Avoid tire/tool contact with the valve on dismount.
    • Dismount should end near the valve.
  3. Rotate the wheel clockwise.
    G12600741Courtesy of HYUNDAI MOTOR AMERICA
    G12600742Courtesy of HYUNDAI MOTOR AMERICA
  4. The valve during transportation (air inlet portion of the silver) deviated from its original location be sure to check whether the original position of the valve (metal brackets) are assembled in indented state.
  5. While tightening the nut on the valve as not to deviate from the fixed position while rotating the valve to a fixed location (metal brackets to fit inside) and push. The specified torque (8Nm) to tighten the nut does not reuse.
  6. Contact with the rim so that the valve washer seals the valve hole put into.

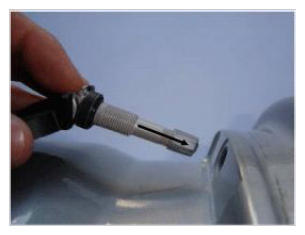

    G12600743Courtesy of HYUNDAI MOTOR AMERICA
  7. Housing with two fingers holding the valve in the axial direction with one finger and push the valve.

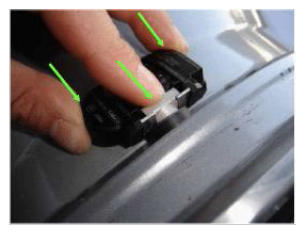

    G12600744Courtesy of HYUNDAI MOTOR AMERICA
  8. Housing, the state must be visible laser marking.

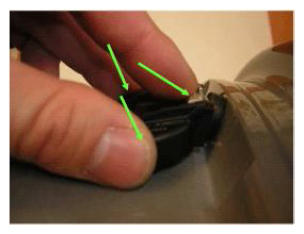

    G12600745Courtesy of HYUNDAI MOTOR AMERICA
  9. When the valve is fully inserted so that the contact between the sensor and the rim while keeping hands on the wheel nut tightening will start Wed.

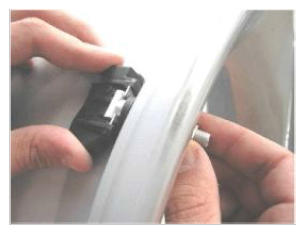

    G12600746Courtesy of HYUNDAI MOTOR AMERICA
  10. While maintaining the position of the valve and the sensor is mounted nut.

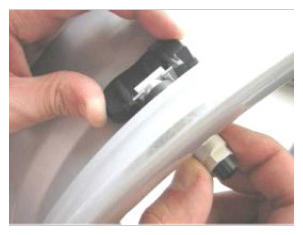

    G12600747Courtesy of HYUNDAI MOTOR AMERICA
  11. Apply tire soap or lubrication to the top and bottom tire beads.
    G12600748Courtesy of HYUNDAI MOTOR AMERICA
  12. To fit the bottom bead, position the sensor at the 5 o'clock position relative to the head on the tire changing machine
    G12600749Courtesy of HYUNDAI MOTOR AMERICA
  13. Place the tire on the rim so the bottom bead touches the edge of the rim after the sensor (@6 o'clock). Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to fit bottom bead.
    G12600750Courtesy of HYUNDAI MOTOR AMERICA
  14. After bottom bead is on tire, rotate the rim until the sensor is at the 5 o'clock position relative to the head on the tire changing machine. Push down on the tire at the 3 o'clock position and rotate the rim clockwise to fit the top bead.
    G12600751Courtesy of HYUNDAI MOTOR AMERICA
  15. Inflate the tire until both beads seat.
    G12600752Courtesy of HYUNDAI MOTOR AMERICA
  16. In the case of TPMS sensor failure, TPMS sensor needs learning. Faulty sensor is replaced new units, conduct learning of TPMS sensors.
