Components And Components Location: Components

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

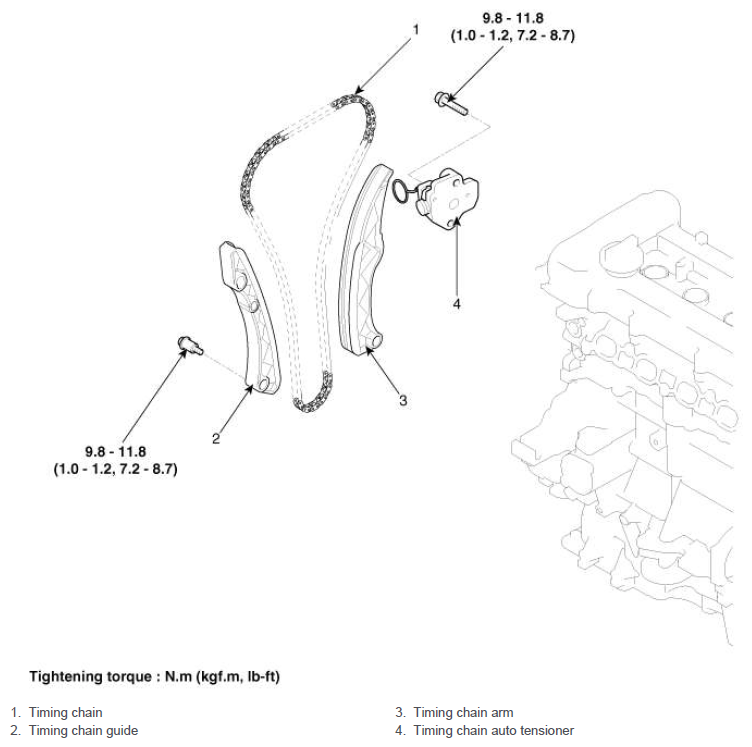

Fig 1: Locating Timing Chain Components With Torque Specification
G12594172Courtesy of HYUNDAI MOTOR AMERICA
