Repair Procedures: Removal
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

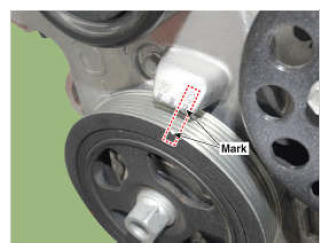

- Turn the crankshaft damper pulley clockwise, and align its groove with the timing mark of the timing chain cover.
- Remove the timing chain cover & oil pump assembly.
(Refer to Timing System - "TIMING CHAIN COVER & OIL PUMP ASSEMBLY ")

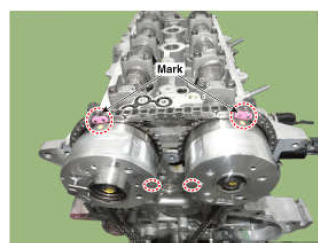

- Align the timing marks of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.CAUTION:

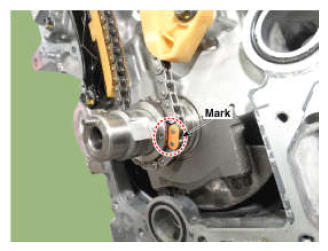

- Check the dowel pin of the crankshaft for facing upside of the engine at this moment.
- Remove the timing chain (A).CAUTION:
- Before removing the tensioner, fix the piston of the tensioner with a pin through the hole (B) at compressed position.

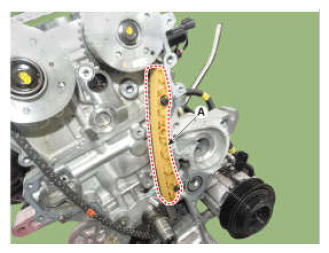

- Remove the timing chain tensioner arm (A).

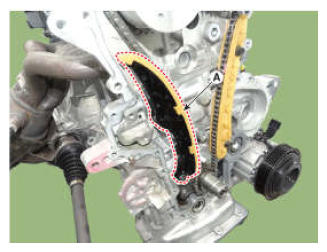

- Remove the timing chain guide (A).

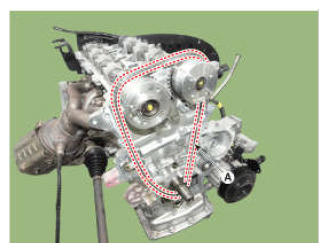

- Remove the timing chain (A).
