Auto Detected Configuration Reset, Variant Coding

Connect KDS to DLC (Data Link Cable)
Select the "Vehicle S/W Management" about related DTC with KDS (Auto detected configuration reset).

Courtesy of KIA MOTORS AMERICA, INC.

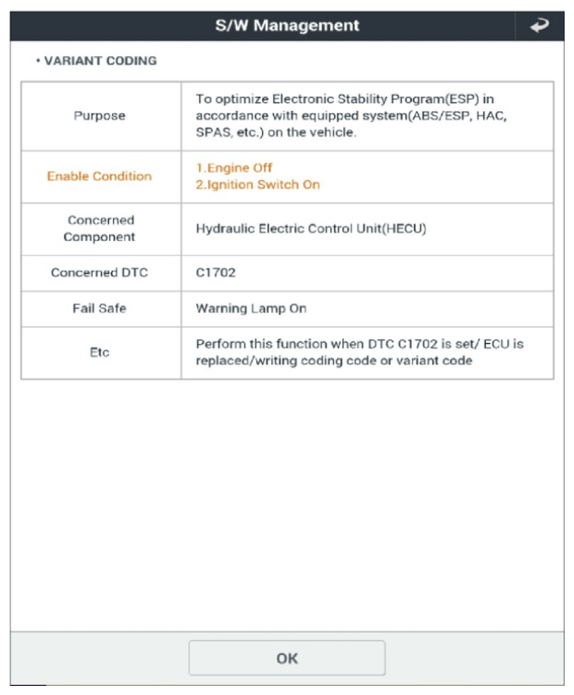

Figure) Select Auto detected configuration reset, Variant coding

Courtesy of KIA MOTORS AMERICA, INC.

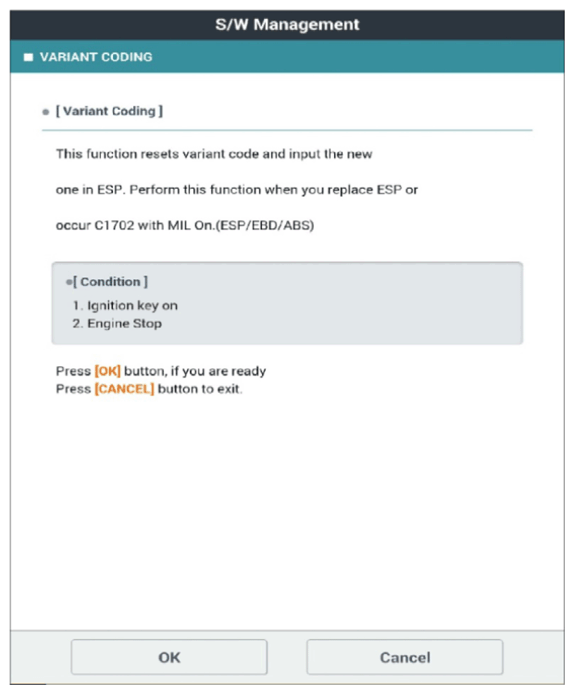

Figure) Press "OK"

Courtesy of KIA MOTORS AMERICA, INC.

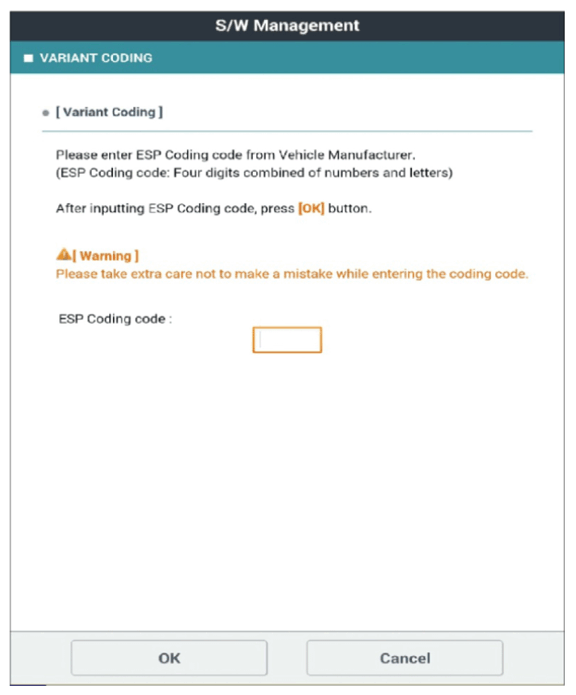

Figure) Press "OK" (Please enter in ESC coding code from GSW site)

Courtesy of KIA MOTORS AMERICA, INC.

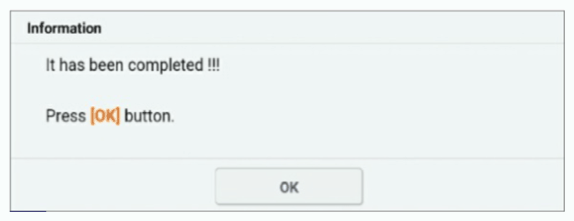

Figure) Completed
Select the "Vehicle S/W Management" about related DTC with KDS (Variant coding).

Courtesy of KIA MOTORS AMERICA, INC.

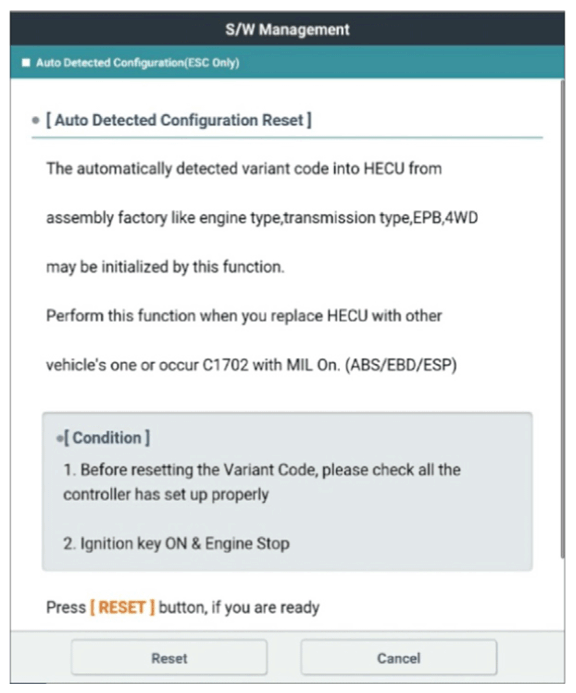

Figure) Press "Reset"

Courtesy of KIA MOTORS AMERICA, INC.

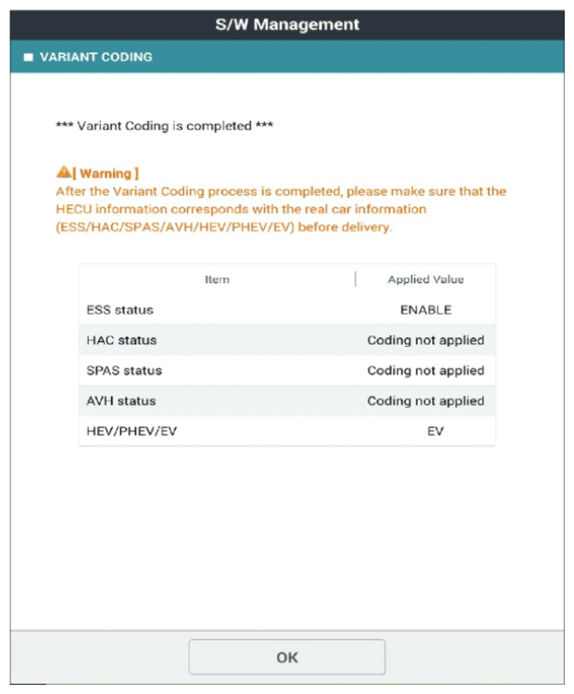

Figure) Completed
When the "Vehicle S/W Management" has been finished perfectly, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
