Monitor DTC Status

Connect KDS to Data Link Connector (DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

Courtesy of KIA MOTORS AMERICA, INC.

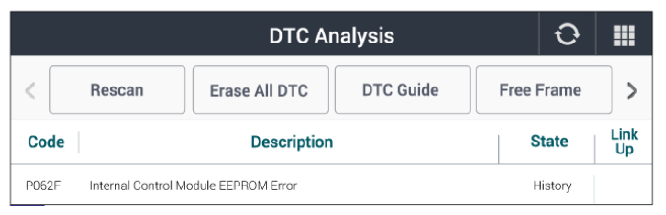

Fig.1) Diagnostic Trouble Code (DTC) is shown above - History
Is DTC status displayed as Present (Pending)?
YES
- Go to next procedure.
NO
- Erase the DTCs that stored as history, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
If the Pending DTC, select "Freeze Frame" (Fig.2 below) and monitor "Information Code" (Fig.3 below).

Courtesy of KIA MOTORS AMERICA, INC.

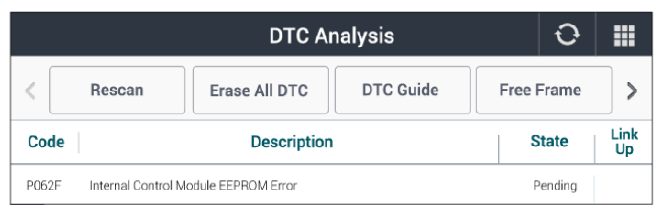

Fig.2) Diagnostic Trouble Code (DTC) is shown above - Pending

Courtesy of KIA MOTORS AMERICA, INC.

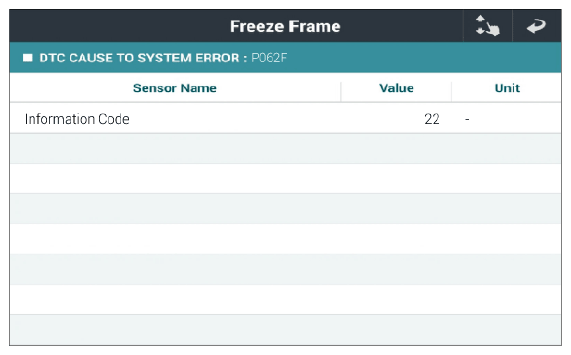

Fig.3) Freeze Frame is shown above - Information Code: 22

Perform applicable repair procedure for "Information Code" and perform following procedure.

Information Code	Possible cause
22	EEPROM module malfunction occurred
